SKF PRM 202330 sliding bush, coiled bronze belt
Code: 309310
Product detailed description

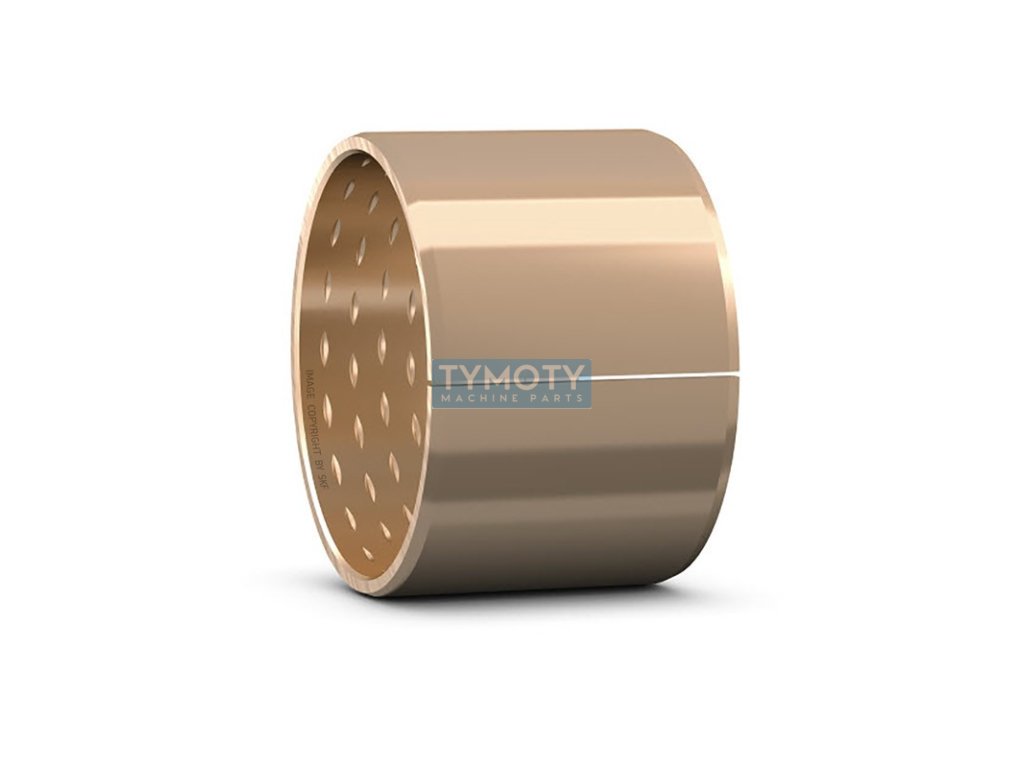

PRM 202330 is a cylindrical plain bearing rolled from a bronze strip. The bronze strip is made of tin bronze CuSn8. The strips of this material are rolled into a cylinder and the working surface is provided with diamond-shaped pockets. These pockets then serve as lubricant reservoirs. These bearings are suitable for both radial and axial movement and withstand shock loads and vibrations well. They can be lubricated with oil and grease and are suitable for temperatures from -40 ° C to +150 ° C.20x23x30Additional parameters
| Category: | Bearings > slippery > cases > coiled bronze belt |
|---|---|
| Weight: | 0.025 kg |
| EAN: | 7316571391045 |

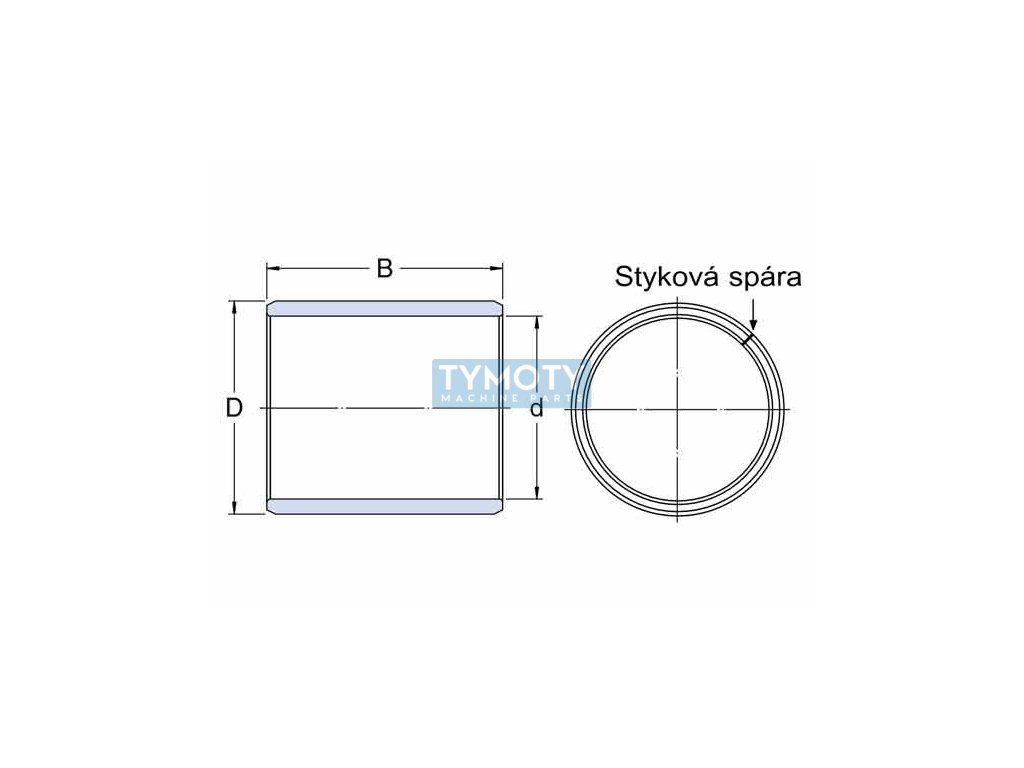

| Diameter D (mm): | 20, 23 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | SKF |
| Material: | bronze |
| Maximum temperature °C: | +150 |
| Minimum temperature °C: | -40 |
| Width B (mm): | 30 |
| Značení: | PRM 202330 |
| Typ: | kluzné pouzdro ze slinutého bronzového pásu |
