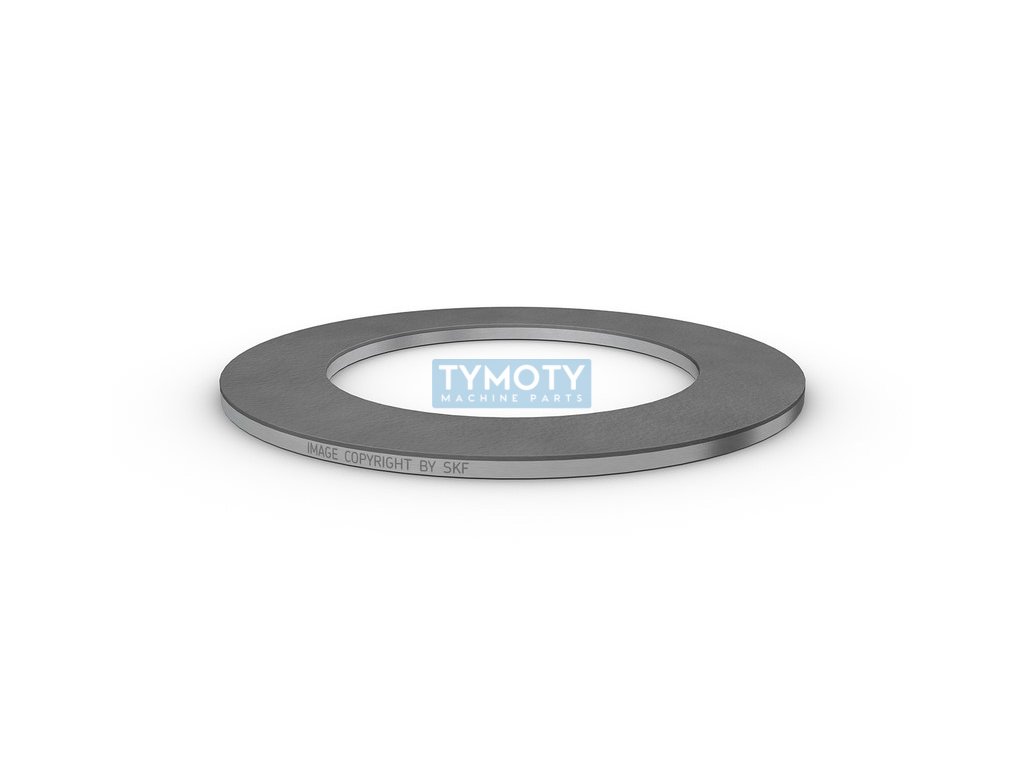

SKF PCMW 203601.5 E axial sliding ring, steel-PTFE
Code: 309755
Product detailed description
PCMW 203601.5 E is an axial sliding ring made of sheet steel with a PTFE working layer. The rings have a high load capacity, very low friction, high sliding speed and operate in a wide temperature range from -200 °C to +250 °C. They are suitable for operating conditions with high loads and a requirement for maintenance-free operation. The PTFE-based sliding layer of the bearing is partially transferred to the opposing surface after a short run-in period, thus creating a physically bonded sliding film. However, regular relubrication improves performance and extends their service life.Additional parameters
| Category: | Bearings > slippery > axial rings > steel-composite PTFE/Pb |
|---|---|
| Weight: | 0.008 kg |
| EAN: | 7316573314776 |

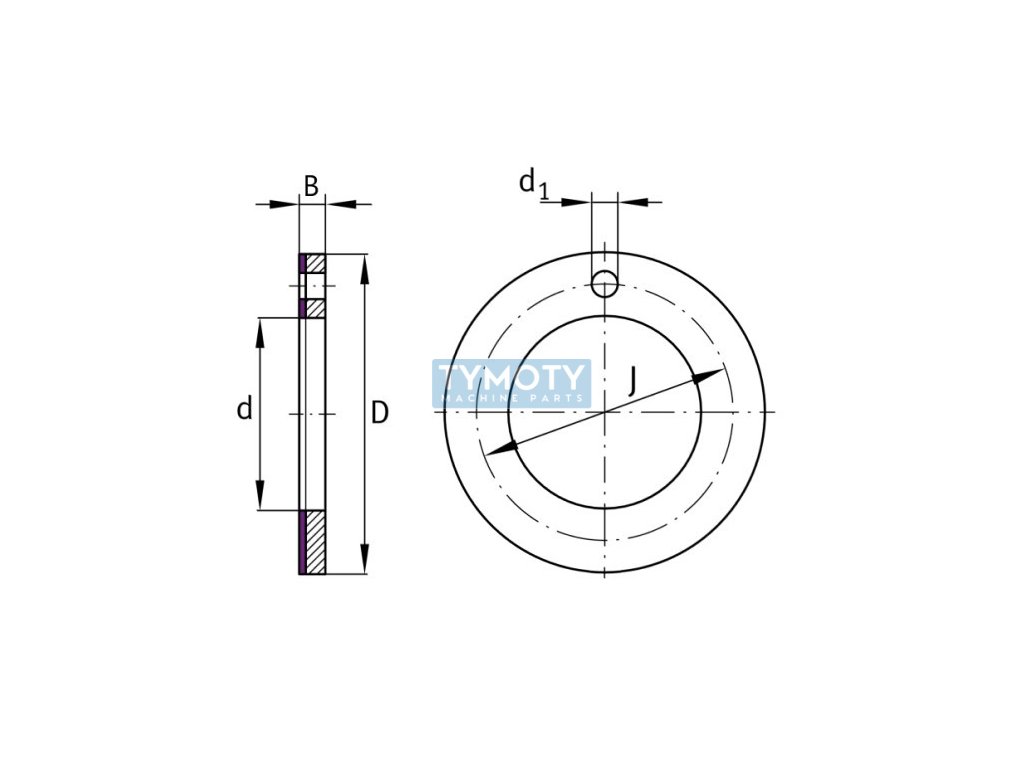

| Diameter D (mm): | 20, 36 |
| Manufacturer's brand: | SKF |
| Material: | steel-PTFE |
| Maximum temperature °C: | +250 |
| Minimum temperature °C: | -200 |
| Width B (mm): | 1,5 |
| Značení: | PCMW 203601.5 E |
| Typ: | axiální kluzný kroužek s kompozitem PTFE |
