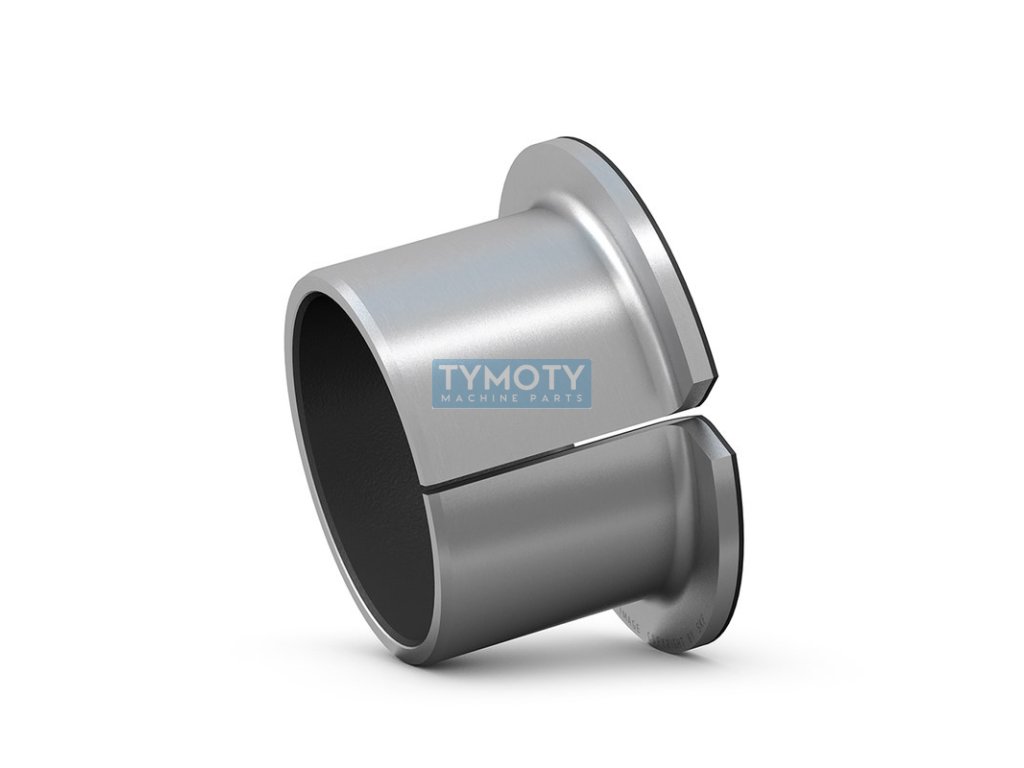

SKF PCMF 081005.5 E sliding flange bushing, steel-PTFE/Pb
Code: 309703
Product detailed description
PCMF 081005.5 E is a sliding bushing rolled from steel sheet with a PTFE working layer. The PTFE-based bushing layer is partially transferred to the opposite surface after a short run-in, creating a physically bonded sliding film. However, regular relubrication improves their performance and extends their service life.Additional parameters
| Category: | Bearings > slippery > flanged bushings > steel - PTFE/Pb composite > d = 8 mm |
|---|---|
| Weight: | 0.002 kg |
| EAN: | 7316571886077 |
| Diameter D (mm): | 10, 8 |
| Diameter d1 (mm): | 15 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | SKF |
| Material: | steel-PTFE |
| Maximum temperature °C: | +250 |
| Minimum temperature °C: | -200 |
| Width B (mm): | 5,5 |
| Width B1 (mm): | 1 |
| Značení: | PCMF 081005.5 E |
| Typ: | přírubové kluzné pouzdro s kompozitem PTFE |
