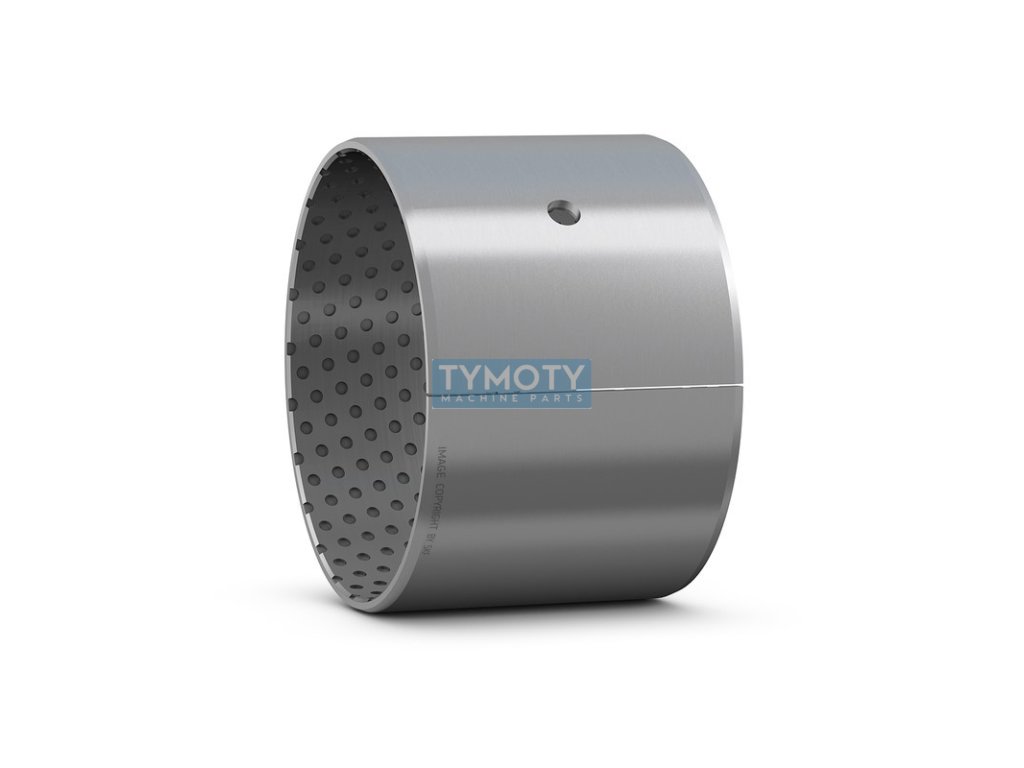

SKF PCM 505530 M sliding bushing, steel-POM
Code: 309607
Product detailed description
PCM 505530 M is a sliding bushing rolled from sheet steel with a layer of POM polyacetate in which small circular holes are created. These act as lubricant reservoirs and allow long relubrication intervals. The bushings have a high load capacity, very low friction, high sliding speed and operate in a wide temperature range from -40 °C to +110 °C. They are suitable for stressed bearings with irregular relubrication.Additional parameters
| Category: | Bearings > slippery > cases > steel - polymer (KX, POM, PVDF) > d = 50 mm |
|---|---|
| Weight: | 0.078 kg |
| EAN: | 7316571347585 |
| Diameter D (mm): | 55, 50 |
| Manufacturer's brand: | SKF |
| Material: | steel-POM |
| Maximum temperature °C: | +110 |
| Minimum temperature °C: | -40 |
| Width B (mm): | 30 |
| Značení: | PCM 505530 M |
| Typ: | kluzné pouzdro |
