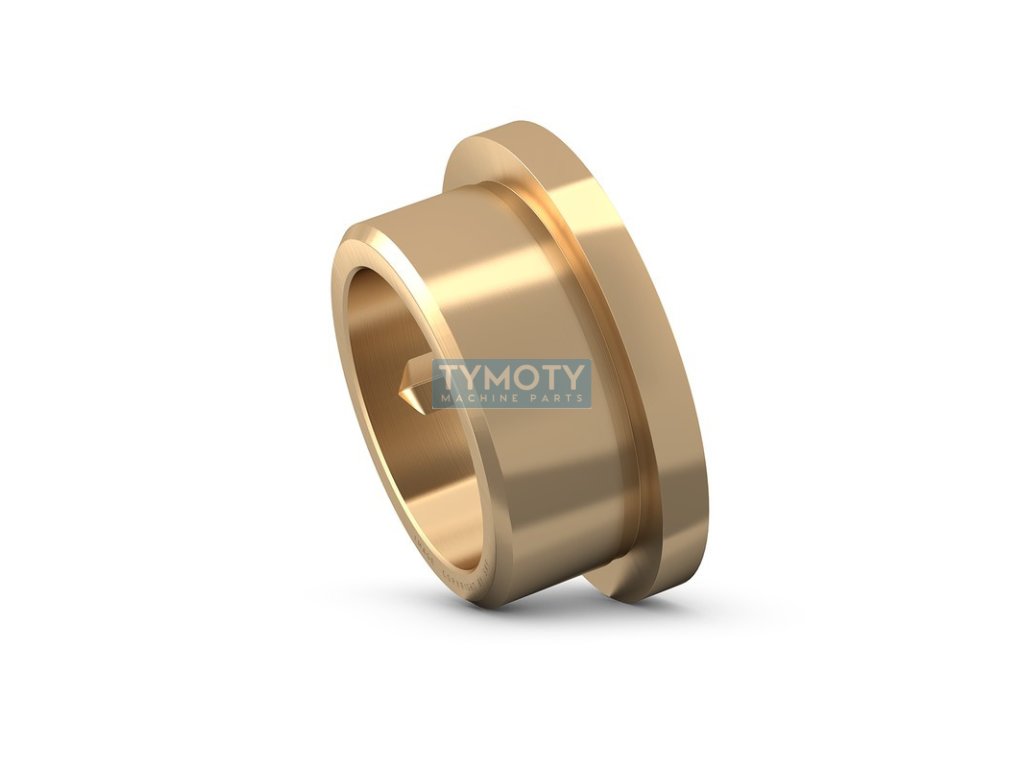

SKF PBMF 607540 M1G1 sliding flange bushing, solid bronze
Code: 309084
Product detailed description
PBMF 607540 M1G1 is a sliding flange bushing made of solid tin bronze CuSn10P. It is suitable for use in demanding adverse operating conditions at temperatures from -40 to +150 °CBushings made of solid bronze
- resist dirt
- withstand shock loads and vibrations at low speeds
- allow the use of shafts with coarse corrosion
Bushings are mainly suitable for oscillating movements, they are not suitable for rotary movements at medium and high speeds and require relubrication with oil or grease.
Additional parameters
| Category: | Bearings > slippery > flanged bushings > solid bronze |
|---|---|
| Weight: | 0.623 kg |
| EAN: | 7316571774992 |

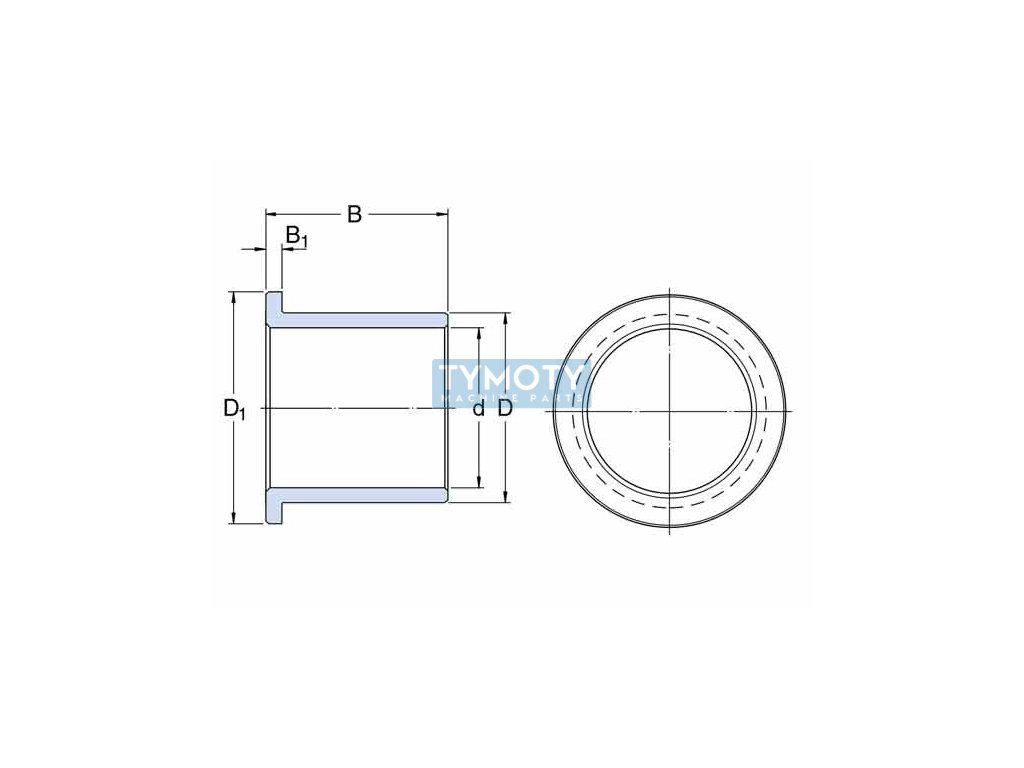

| Diameter D (mm): | 60, 75 |
| Diameter d1 (mm): | 83 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | SKF |
| Material: | solid bronze |
| Maximum temperature °C: | +150 |
| Minimum temperature °C: | -40 |
| Width B (mm): | 40 |
| Width B1 (mm): | 7,5 |
| Značení: | PBMF 607540 M1G1 |
| Typ: | přírubové kluzné pouzdro z masivního bronzu |
