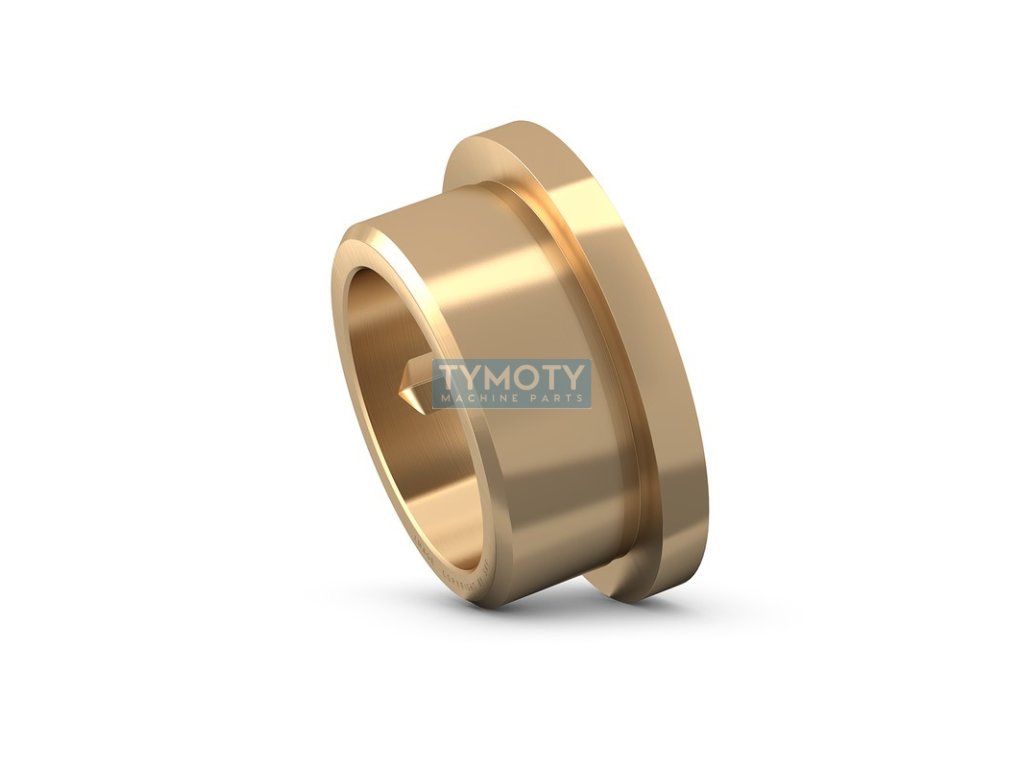

SKF PBMF 202820 M1G1 sliding flange bushing, solid bronze
Code: 309072
Product detailed description
PBMF 202820 M1G1 is a sliding flange bushing made of solid tin bronze CuSn10P. It is suitable for use in demanding bearings and adverse operating conditions at temperatures from -40 to +150 °CBushings made of tin bronze
- resist dirt
- resist shock loads and vibrations at low speeds - allow the use of corrosion-resistant shafts
Bushings are mainly suitable for oscillating movements, they are not suitable for rotary movements at medium and high speeds and require relubrication with oil or grease.
Additional parameters
| Category: | Bearings > slippery > flanged bushings > solid bronze |
|---|---|
| Weight: | 0.064 kg |
| EAN: | 7316571738871 |

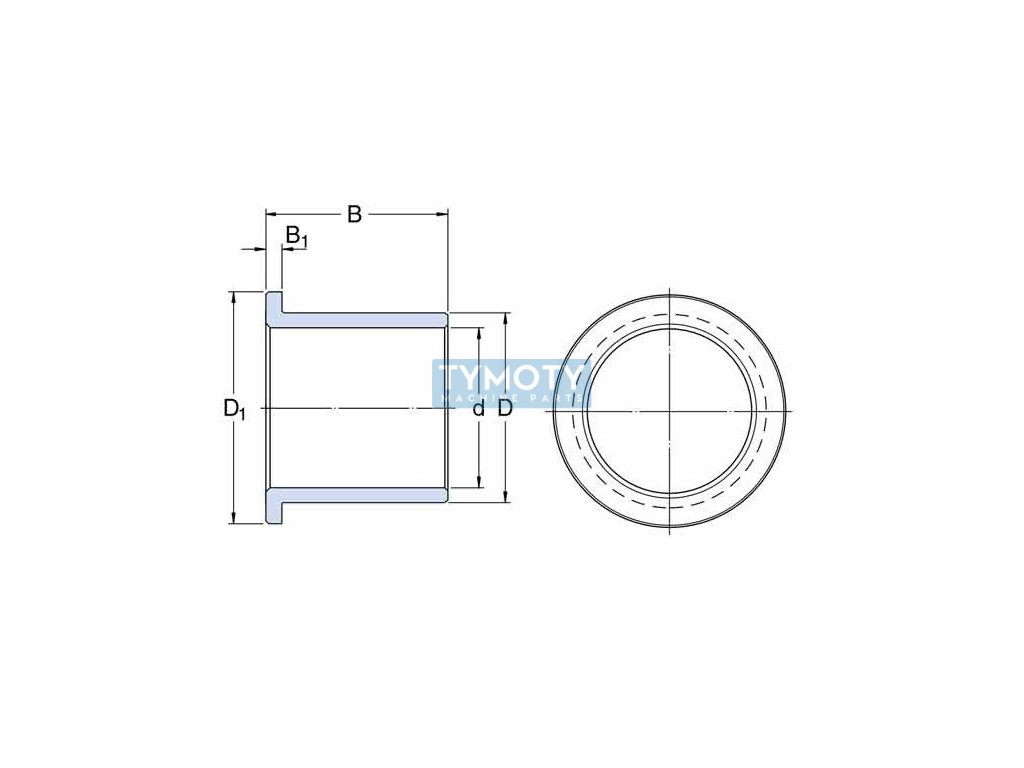

| Diameter D (mm): | 20, 28 |
| Diameter d1 (mm): | 35 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | SKF |
| Material: | solid bronze |
| Maximum temperature °C: | +150 |
| Minimum temperature °C: | -40 |
| Width B (mm): | 20 |
| Width B1 (mm): | 4 |
| Značení: | PBMF 202820 M1G1 |
| Typ: | přírubové kluzné pouzdro z masivního bronzu |
