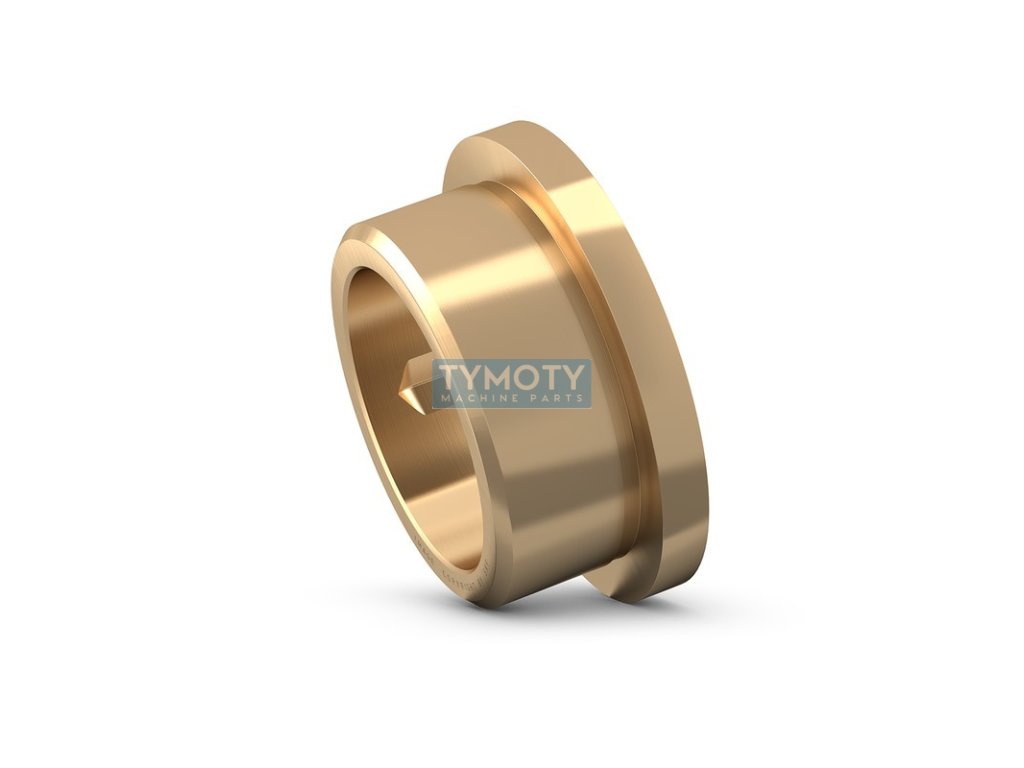

SKF PBMF 202615 M1G1 sliding flange bushing, solid bronze
Code: 309071
Product detailed description
PBMF 202615 M1G1 is a sliding flange bushing made of solid tin bronze CuSn10P. It is suitable for use in demanding bearings and adverse operating conditions at temperatures from -40 to +150 °C. They withstand shock loads and vibrations - allow the use of shafts with a rough surface - are not subject to corrosion The bushings are suitable primarily for oscillating movements, they are not suitable for rotary movements at medium and high speeds and require lubrication with oil or grease.Additional parameters
| Category: | Bearings > slippery > flanged bushings > solid bronze |
|---|---|
| Weight: | 0.042 kg |
| EAN: | 7316571738857 |

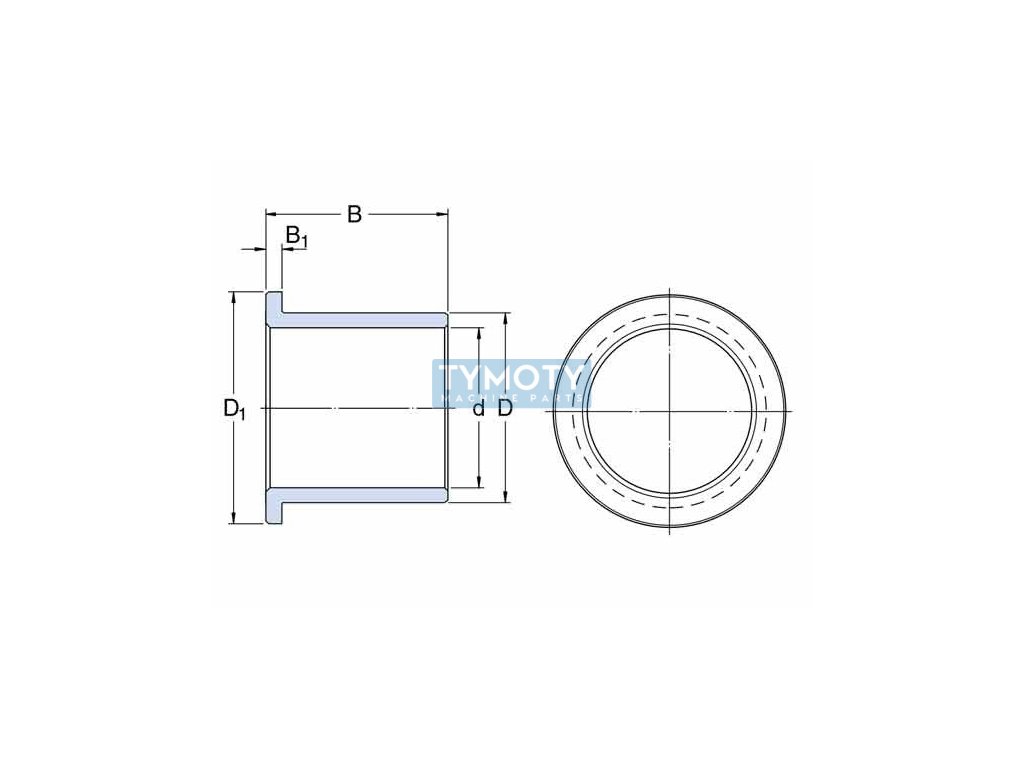

| Diameter D (mm): | 20, 26 |
| Diameter d1 (mm): | 32 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | SKF |
| Material: | solid bronze |
| Maximum temperature °C: | +150 |
| Minimum temperature °C: | -40 |
| Width B (mm): | 15 |
| Width B1 (mm): | 3 |
| Značení: | PBMF 202615 M1G1 |
| Typ: | přírubové kluzné pouzdro z masivního bronzu |
