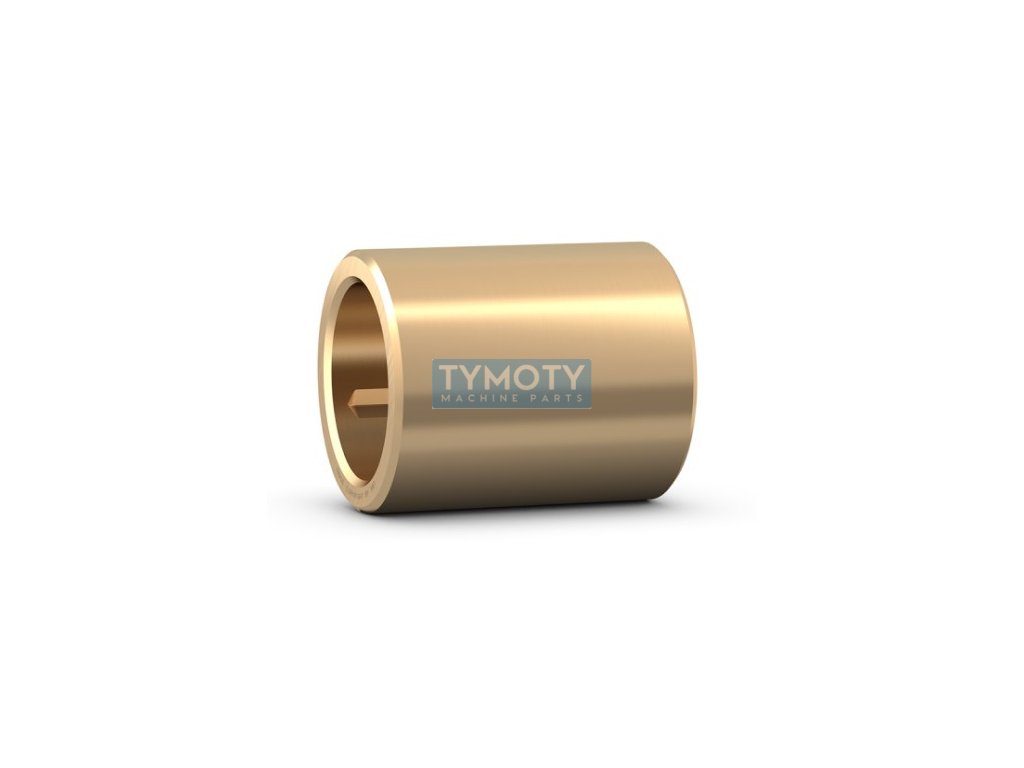

SKF PBM 506050 M1G1 sliding bush, solid bronze
Code: 309014
Product detailed description
PBM 506050 M1G1 is a sliding bushing made of solid tin bronze CuSn10P. It is suitable for use in demanding bearings and adverse operating conditions at temperatures from -40 to +150 °Cshock loads and vibrations
- allow the use of shafts with a rough surface
- are not subject to corrosion
The bushings are suitable primarily for oscillating movements, they are not suitable for rotary movements at medium and high speeds and require lubrication with oil or grease.
Additional parameters
| Category: | Bearings > slippery > cases > solid bronze |
|---|---|
| Weight: | 0.378 kg |
| EAN: | 7316571774589 |

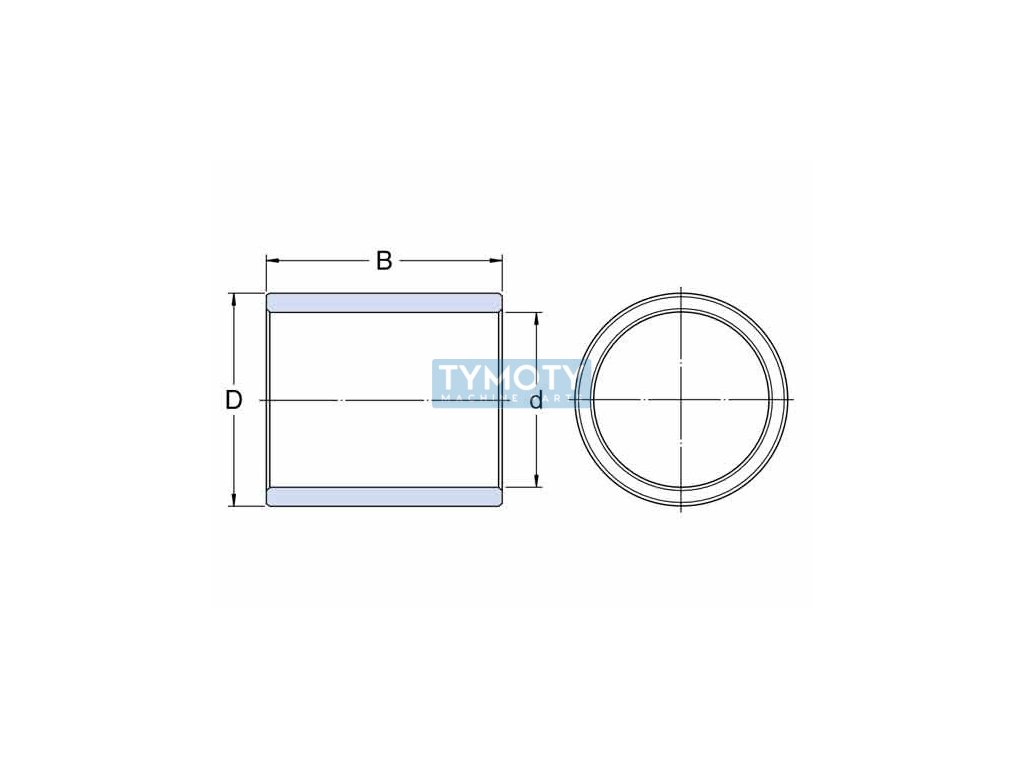

| Diameter D (mm): | 50, 60 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | SKF |
| Material: | solid bronze |
| Maximum temperature °C: | +150 |
| Minimum temperature °C: | -40 |
| Width B (mm): | 50 |
| Značení: | PBM 506050 M1G1 |
| Typ: | kluzné pouzdro z masivního bronzu |
