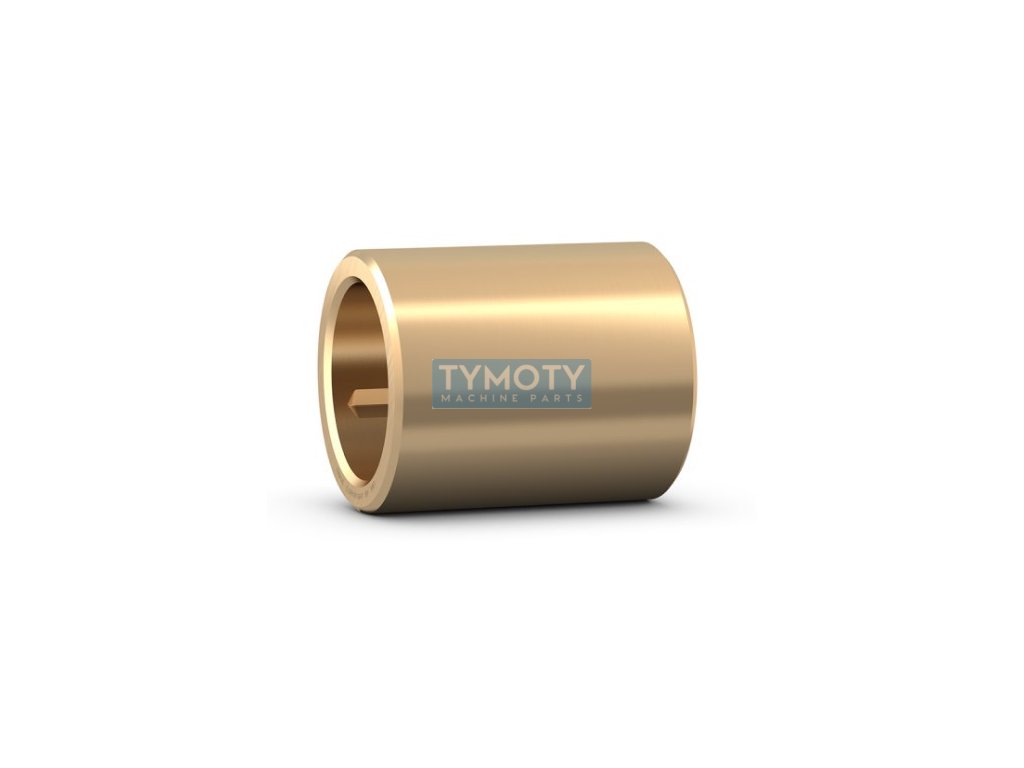

SKF PBM 404840 M1G1 sliding bushing, solid bronze
Code: 309009
Product detailed description
PBM 404840 M1G1 is a sliding bushing made of solid tin bronze CuSn10P. It is suitable for use in demanding bearings and adverse operating conditions at temperatures from -40 to +150 °CBushings made of tin bronze
- resist dirt
- resist shock loads and vibrations at low speeds - allow the use of corrosion-resistant shafts
Bushings are mainly suitable for oscillating movements, they are not suitable for rotary movements at medium and high speeds and require lubrication with oil or grease.
Additional parameters
| Category: | Bearings > slippery > cases > solid bronze |
|---|---|
| Weight: | 0.194 kg |
| EAN: | 7316571774466 |

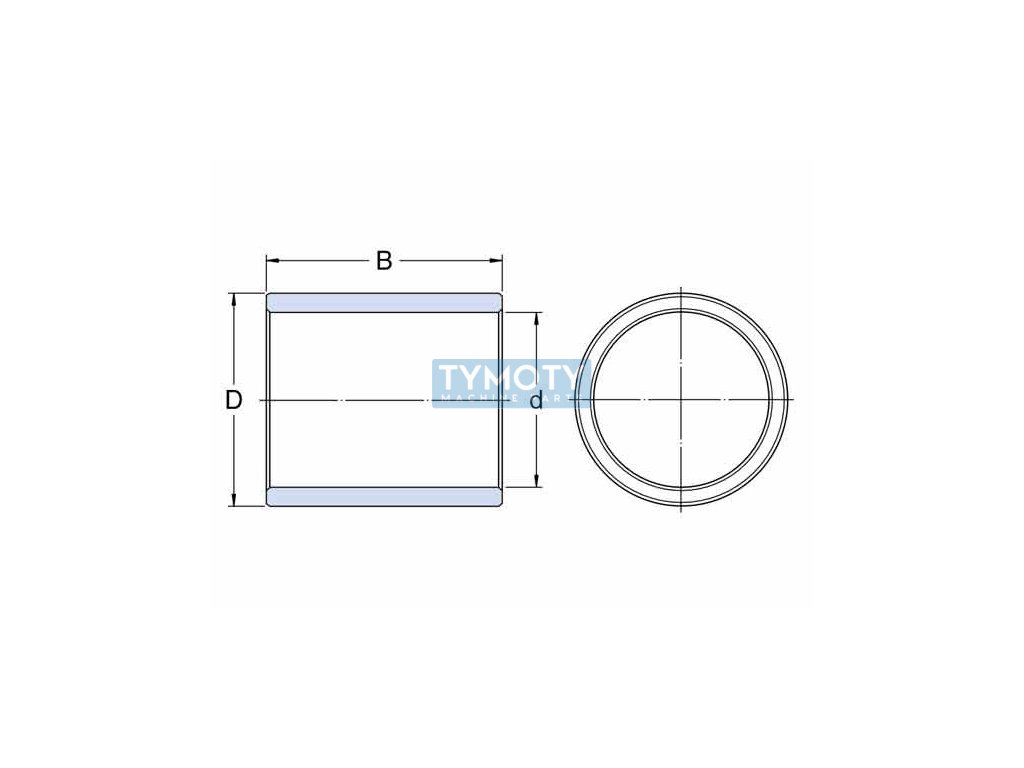

| Diameter D (mm): | 40, 48 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | SKF |
| Material: | solid bronze |
| Maximum temperature °C: | +150 |
| Minimum temperature °C: | -40 |
| Width B (mm): | 40 |
| Značení: | PBM 404840 M1G1 |
| Typ: | kluzné pouzdro z masivního bronzu |
