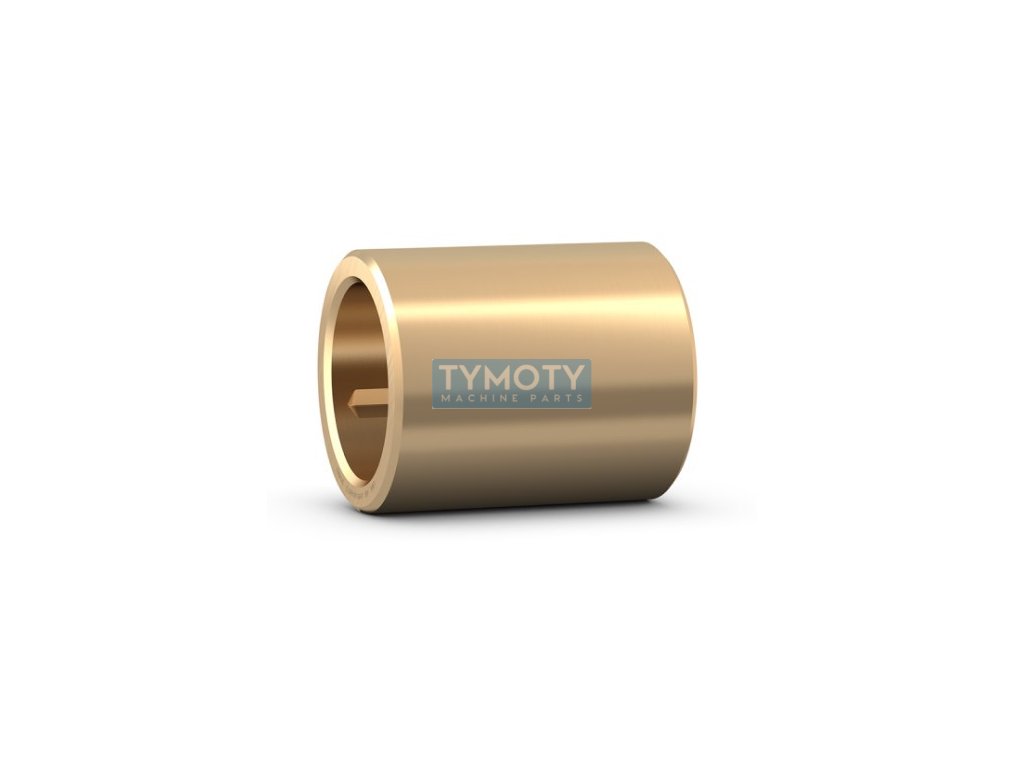

SKF PBM 304045 M1G1 sliding bushing, solid bronze
Code: 309006
Product detailed description
PBM 304045 M1G1 is a sliding bushing made of solid tin bronze CuSn10P. It is suitable for use in demanding bearings and adverse operating conditions at temperatures from -40 to +150 °CBushings made of tin bronze
- resist dirt
- resist shock loads and vibrations at low speeds - allow the use of shafts with corrosion
Bushings are mainly suitable for oscillating movements, they are not suitable for rotary movements at medium and high speeds and require lubrication with oil or grease.
Additional parameters
| Category: | Bearings > slippery > cases > solid bronze |
|---|---|
| Weight: | 0.217 kg |
| EAN: | 7316571774435 |

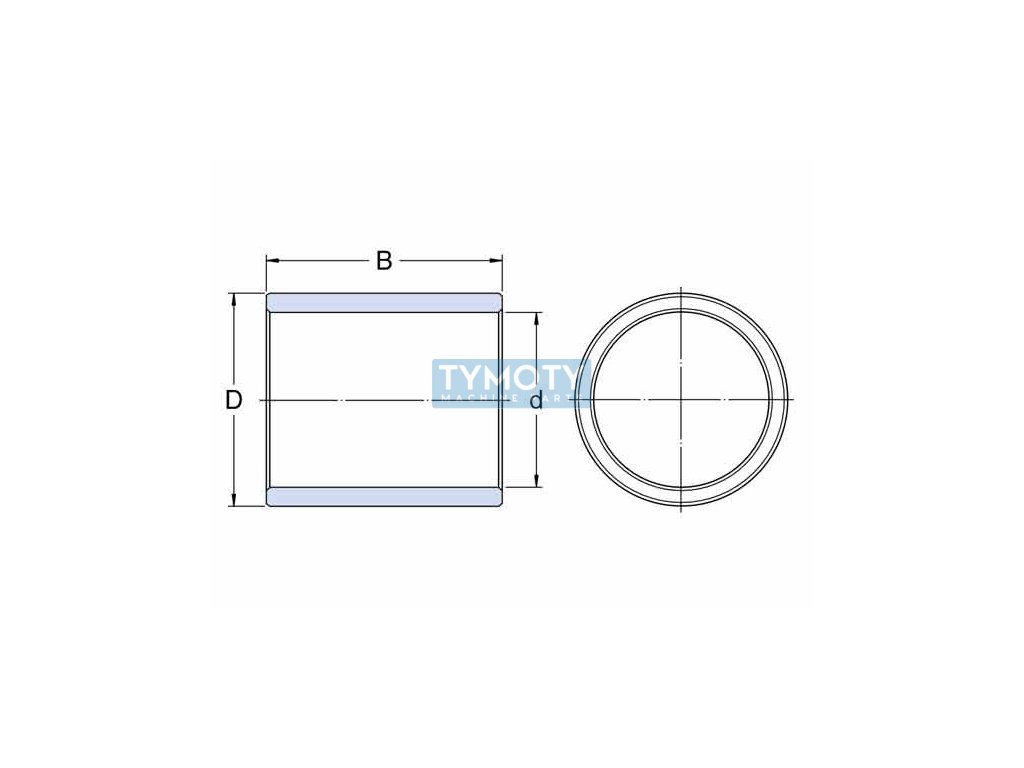

| Diameter D (mm): | 30, 40 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | SKF |
| Material: | solid bronze |
| Maximum temperature °C: | +150 |
| Minimum temperature °C: | -40 |
| Width B (mm): | 45 |
| Značení: | PBM 304045 M1G1 |
| Typ: | kluzné pouzdro z masivního bronzu |
