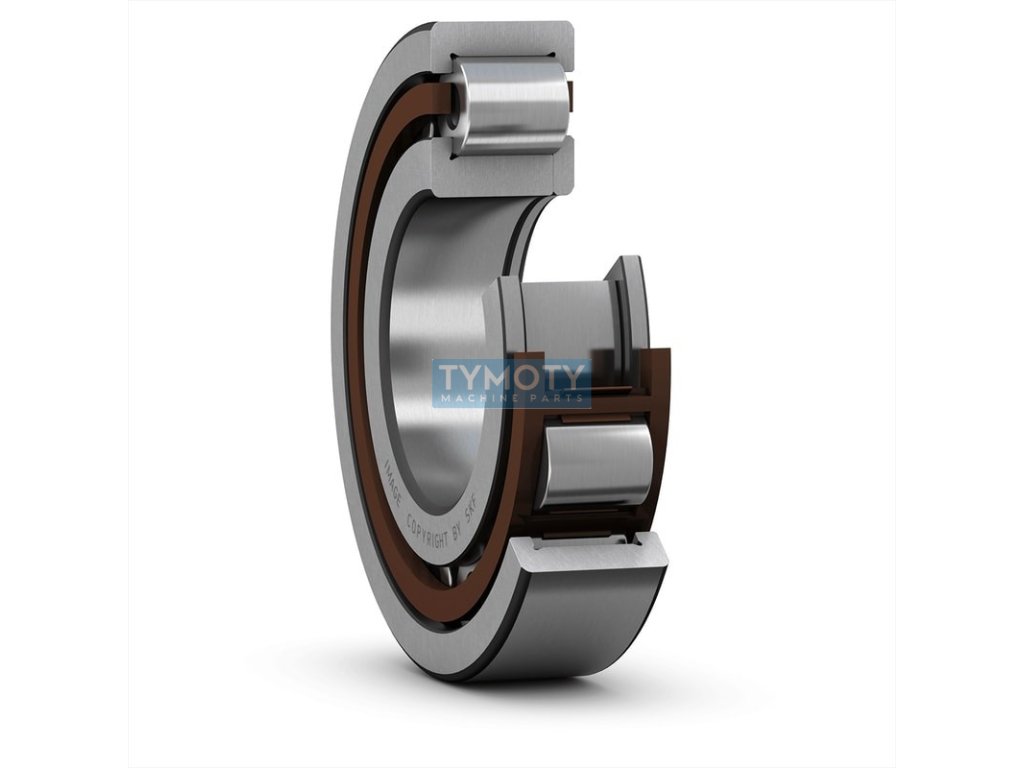

SKF NUP 2211 ECP roller bearing

Product detailed description

SKF NUP 2211 ECP is a single row cylindrical roller bearing with an optimized internal design that ensures efficient load distribution and long service life. This bearing is part of the Explorer series, which means it is designed for higher performance and reliability. Its dimensions are: inner diameter (d) 55 mm, outer diameter (D) 100 mm and width (B) 25 mm.

The bearing has a cylindrical bore and is equipped with a polyamide cage that reduces friction and increases wear resistance. It is characterized by normal radial clearance, which allows optimal operation under normal conditions. The bearing is unsealed, which means it is uncovered and requires external lubrication. The absence of a groove or lubrication hole on the outer ring makes it suitable for applications where additional maintenance is not required.

The operating temperature range of the bearing is from -30 °C to +120 °C, which allows it to be used in various industrial applications. The bearing has a dimensional accuracy of P0/PN, or ABEC 1, and a running accuracy of P6, which guarantees high accuracy and reliability during rotation.

With a weight of 0.823 kg, this bearing is ideal for applications where high load capacity is required while maintaining compact dimensions. The SKF NUP 2211 ECP is an axially guided bearing, which means that it is capable of carrying axial loads in one direction, providing additional stability in mechanical assemblies.
