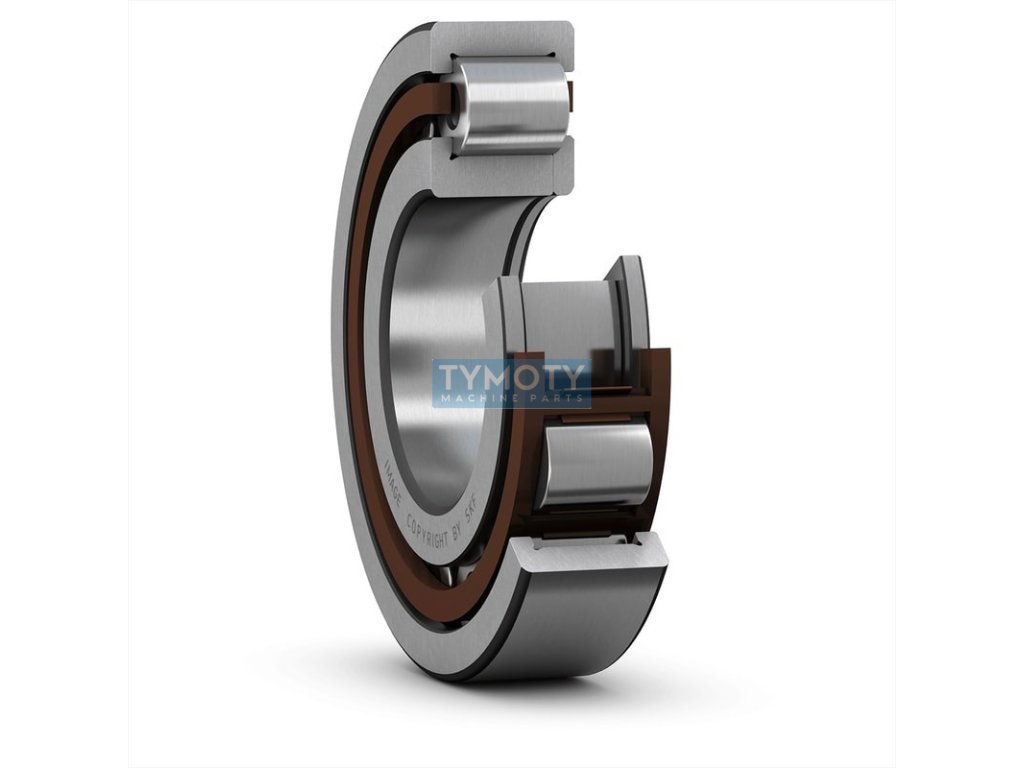

SKF NUP 216 ECP roller bearing
Code: 334068
Product detailed description
SKF Explorer NUP 216 ECP - single row separable radial roller bearing with an injection-molded window cage made of glass-fibre reinforced polyamide 6.6 guided by rollers, higher load capacity and normal radial internal clearance. two guide flanges and the inner ring has one fixed and one loose, which is formed by a loose contact ring. rollers, on the inner ring and on the contact ring.SKF Explorer class bearings represent a new class of high-performance rolling bearings, offering a significant increase in the main operating parameters such as noise, vibration, heat generation, operational reliability, dynamic load capacity and are manufactured with higher accuracy than normal.
Additional parameters
| Category: | Bearings > roller > single row > NUP type > NUP 2.. > NUP 216 |
|---|---|
| Weight: | 1.567 kg |
| EAN: | 7316577031242 |
| Cage: | polyamide |
| Clearance: | normal |
| Diameter D (mm): | 80, 140 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | SKF |
| Material: | steel |
| Maximum temperature °C: | +120 |
| Minimum temperature °C: | -30 |
| Seal: | without gaskets |
| The shape of the outer ring: | without groove / lubrication hole |
| Width B (mm): | 26 |
| Značení: | NUP 216 ECP |
| Typ: | válečkové ložisko |
