SKF NUP 205 ECP roller bearing

Product detailed description

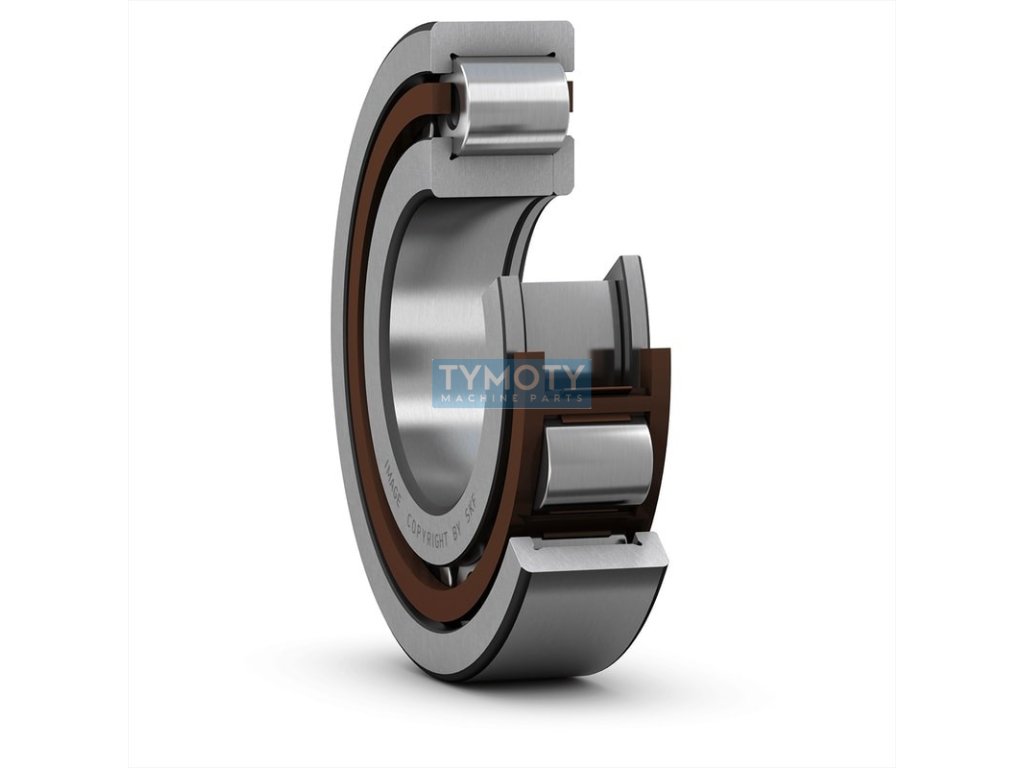

SKF NUP 205 ECP - single-row separable radial roller bearing with an injection-molded window cage made of glass-fiber reinforced polyamide 6.6 guided by rollers, higher load capacity and normal radial internal clearance. The bearing can operate at temperatures up to +120°C.
The outer ring of the bearing has two guide flanges and the inner ring has one fixed and one loose, which is formed by a loose contact ring. This prevents axial displacement of the shaft relative to the housing and the bearing can be used as a bidirectional axial guide. The rollers are guided by flanges.
For easier assembly, the bearing can be divided into an outer ring with a cage with rollers, an inner ring and a contact ring.
