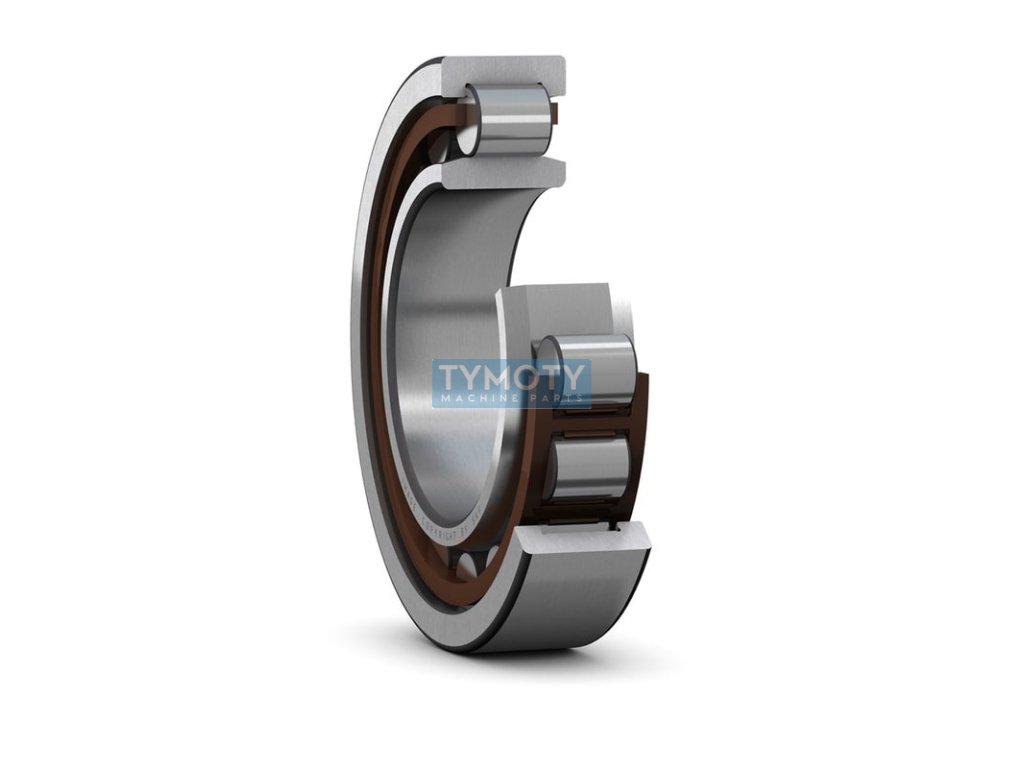

SKF NU 318 ECP roller bearing
Code: 331186
Product detailed description
SKF Explorer NU 318 ECP - single row separable radial roller bearing with an injection-molded window cage made of glass-fibre reinforced polyamide 6.6 guided by rollers, higher load capacity and with normal radial internal clearance. two guide flanges and the inner one is flangeless, this allows axial displacement of the shaft relative to the housing in both directions. main operating parameters, such as noise, vibration, heat generation, operational reliability, dynamic load capacity and are manufactured with higher accuracy than normal. Dimensional accuracy corresponds to accuracy class P6.Additional parameters
| Category: | Bearings > roller > single row > Well 3.. > NU 318 |
|---|---|
| Weight: | 5.25 kg |
| EAN: | 7316577039941 |
| Cage: | polyamide |
| Clearance: | normal |
| Diameter D (mm): | 90, 190 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | SKF |
| Material: | steel |
| Maximum temperature °C: | +120 |
| Minimum temperature °C: | -30 |
| Seal: | without gaskets |
| The shape of the outer ring: | without groove / lubrication hole |
| Width B (mm): | 43 |
| Značení: | NU 318 ECP |
| Typ: | válečkové ložisko |
