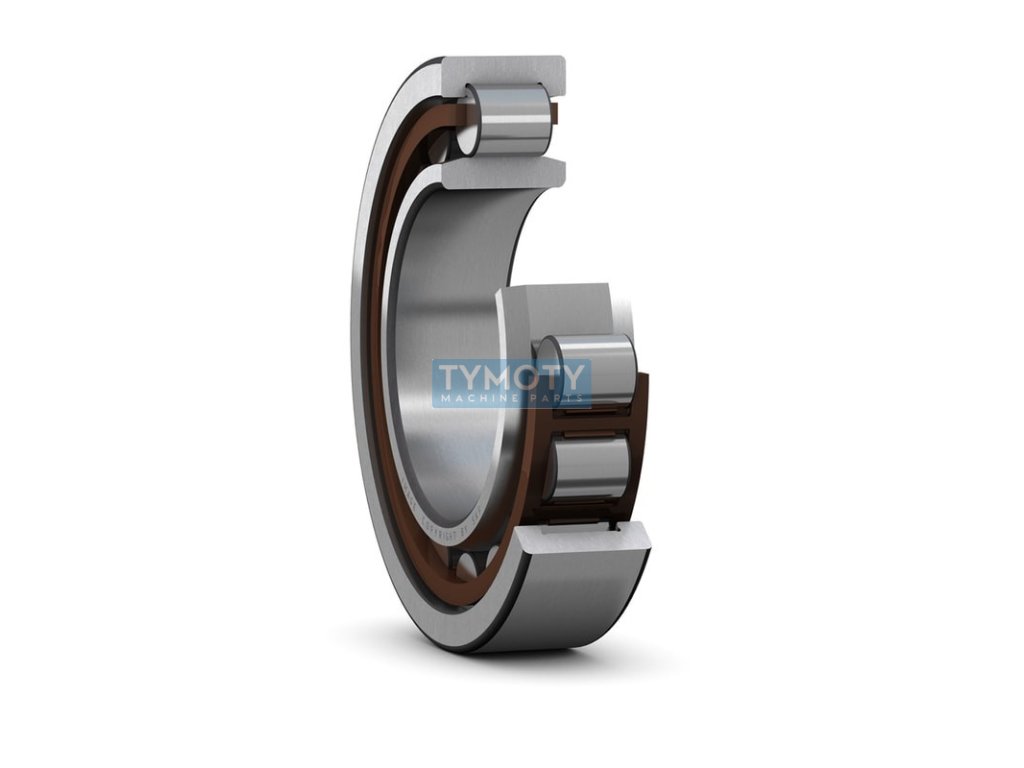

SKF NU 2204 ECP roller bearing
Code: 331948
Product detailed description
SKF NU 2204 ECP - single row separable radial roller bearing with an injection-molded window cage made of glass-fiber reinforced polyamide 6.6 guided by rollers, higher load capacity and normal radial internal clearance. two guide flanges and the inner one is flangeless, this allows axial displacement of the shaft relative to the housing in both directions.Additional parameters
| Category: | Bearings > roller > single row > Well the 22nd.. > NU 2204 |
|---|---|
| Weight: | 0.137 kg |
| EAN: | 7316577027832 |
| Cage: | polyamide |
| Clearance: | normal |
| Diameter D (mm): | 20, 47 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | SKF |
| Material: | steel |
| Maximum temperature °C: | +120 |
| Minimum temperature °C: | -30 |
| Seal: | without gaskets |
| The shape of the outer ring: | without groove / lubrication hole |
| Width B (mm): | 18 |
| Značení: | NU 2204 ECP |
| Typ: | válečkové ložisko |
