SKF NU 202 ECP/C3 roller bearing
Code: 330629
Product detailed description

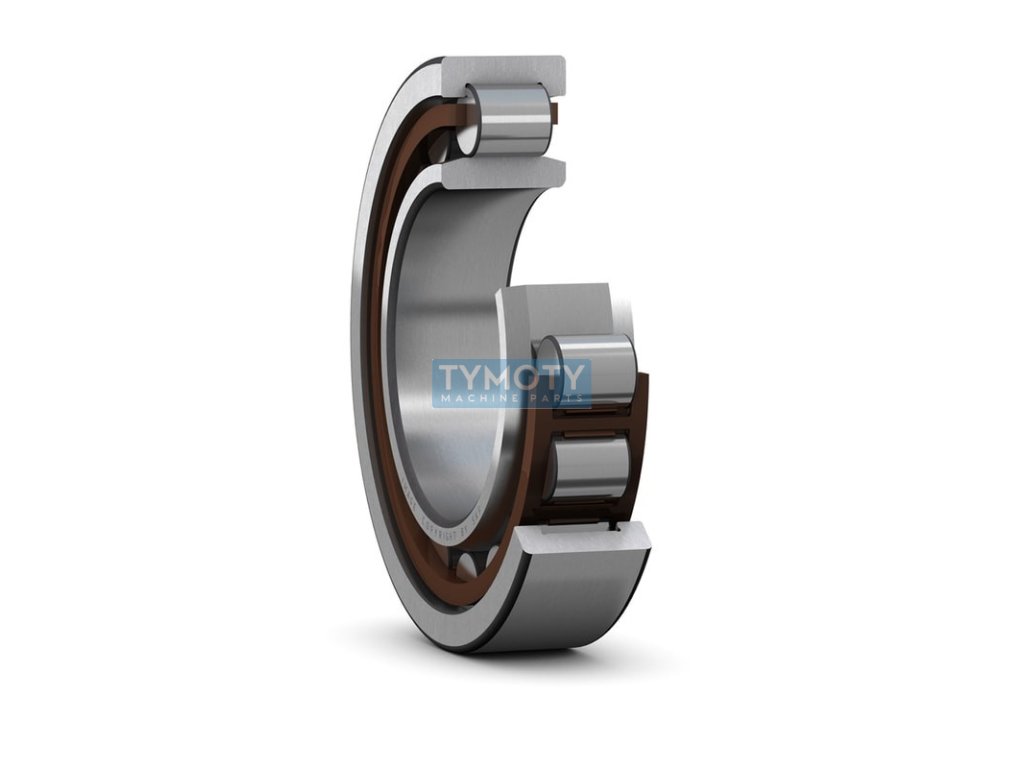

SKF NU 202 ECP/C3 - single-row separable radial roller bearing with an injection-molded window cage made of glass-fiber reinforced polyamide 6.6 guided by rollers, higher load capacity and with a radial internal clearance larger than normal. The bearing can operate at temperatures up to +120°C.The outer ring of the NU 202 bearing has two guide flanges and the inner one is without flanges, which allows axial displacement of the shaft relative to the housing in both directions. The rollers are guided by flanges.
The bearing can be divided into an outer ring with a cage with rollers and an inner ring for easier assembly.
Additional parameters
| Category: | Bearings > roller > single row > Well 2.. > NU 202 |
|---|---|
| Weight: | 0.047 kg |
| EAN: | 7316570896428 |
| Cage: | polyamide |
| Clearance: | C3 - slightly enlarged |
| Diameter D (mm): | 15, 35 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | SKF |
| Material: | steel |
| Maximum temperature °C: | +120 |
| Minimum temperature °C: | -30 |
| Seal: | without gaskets |
| The shape of the outer ring: | without groove / lubrication hole |
| Width B (mm): | 11 |
| Značení: | NU 202 ECP/C3 |
| Typ: | válečkové ložisko |
