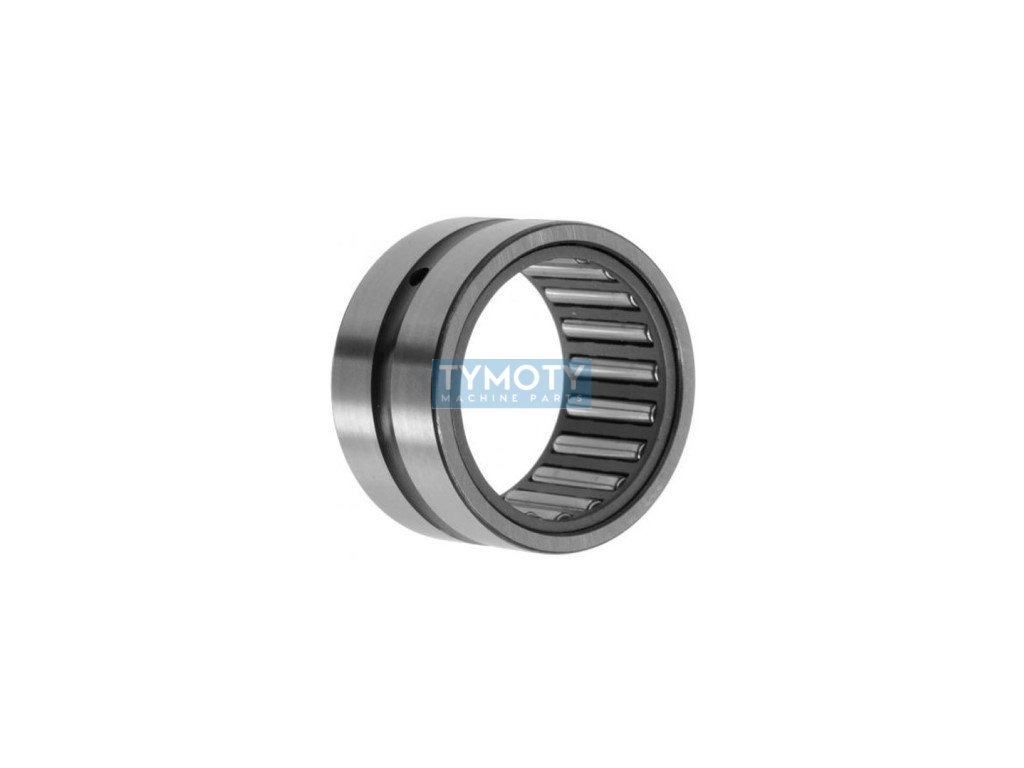

SKF NK 24/16 needle bearing without inner ring

Product detailed description

SKF NK 24/16 is a needle roller bearing without an inner ring, designed for applications where high load capacity and minimum dimensions are required. This bearing has an outer diameter of 32 mm, an inner diameter of 24 mm and a width of 16 mm. It is made of high-quality steel, which guarantees its durability and long service life.

The bearing is designed as a single row, which means that it contains one row of needles. These needles are housed in a pressed steel cage, which ensures their even distribution and minimizes friction. Due to the absence of an inner ring, this bearing is ideal for applications where the inner surface of the shaft is hard enough and precisely machined to serve as a raceway.

SKF NK 24/16 is a bearing without a seal, which means that it is not protected against the ingress of dirt or moisture. Therefore, it is suitable for use in environments where these factors are minimal or where regular lubrication is ensured. The bearing has a circumferential groove with lubrication holes, which allows for easy and effective lubrication during operation.

The operating temperature range of the bearing is from -20 °C to +100 °C, which makes it suitable for most industrial applications. The bearing has normal radial clearance and meets the accuracy class P0/PN, which corresponds to ABEC 1. The weight of the bearing is 0.032 kg, which contributes to its low weight and easier handling during installation.

SKF is a renowned bearing manufacturer, known for its quality and reliability. The NK 24/16 bearing is ideal for various industrial applications where high load capacity and compact dimensions are required, while providing long-term reliability and performance.
