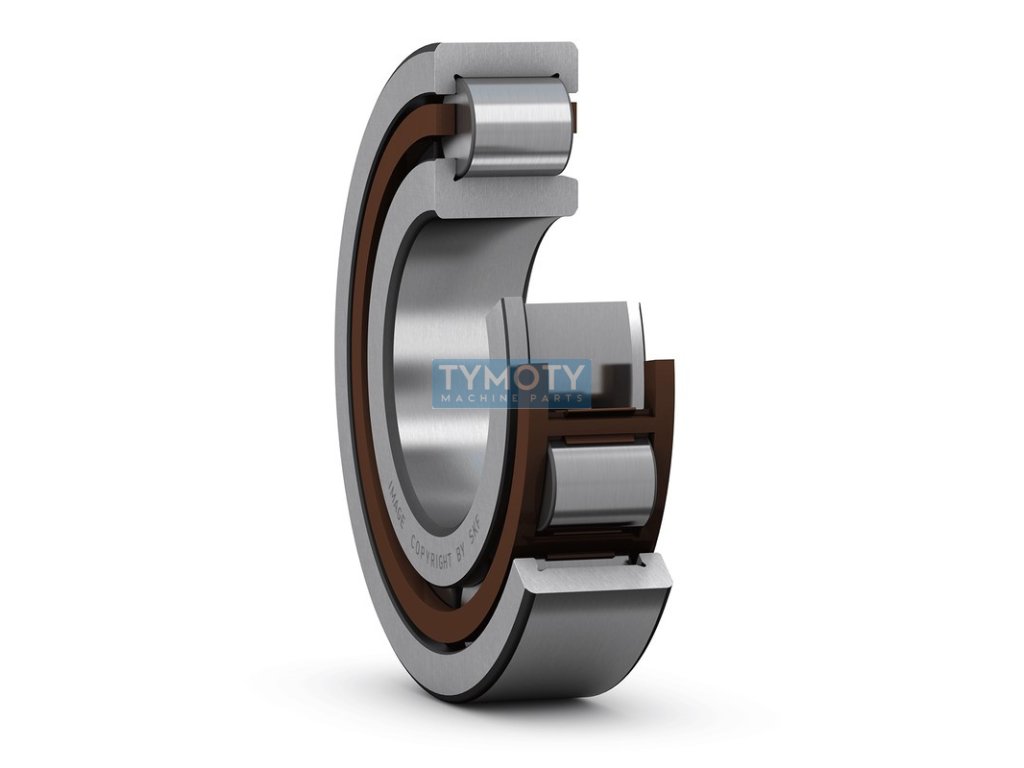

SKF NJ 211 ECP/C3 roller bearing

Product detailed description

SKF NJ 211 ECP/C3 is a cylindrical roller bearing designed for applications where high load capacity and the ability to carry axial loads in one direction are required. The bearing has an inner diameter of 55 mm, an outer diameter of 100 mm and a width of 21 mm. It is made of high-quality steel, which guarantees its long service life and reliability in difficult operating conditions.

This bearing is single-row, with a cylindrical bore, which allows easy mounting on the shaft. The inner ring is removable, which facilitates maintenance and replacement of the bearing. It features an optimized internal design that improves its performance and reduces friction. The bearing is equipped with a polyamide cage, which ensures proper roller guidance and contributes to reducing noise and vibration during operation.

SKF NJ 211 ECP/C3 operates in a temperature range from -30 °C to +120 °C, which allows it to be used in various industrial applications. It has a slightly increased radial clearance C3, which is suitable for applications with higher temperature fluctuations or where a larger clearance is needed to compensate for thermal expansion.

The bearing has no seal, which means that it is uncovered and requires regular maintenance and lubrication. The running accuracy is in accordance with the P0/PN standard, or ABEC 1, with a running accuracy of P6, which guarantees reliable and smooth operation in applications with common accuracy requirements.

The total weight of the bearing is 0.667 kg, which is optimal for its design and function. SKF NJ 211 ECP/C3 is ideal for use in industrial equipment where reliable axial displacement support and high load capacity are required while maintaining compact dimensions.
