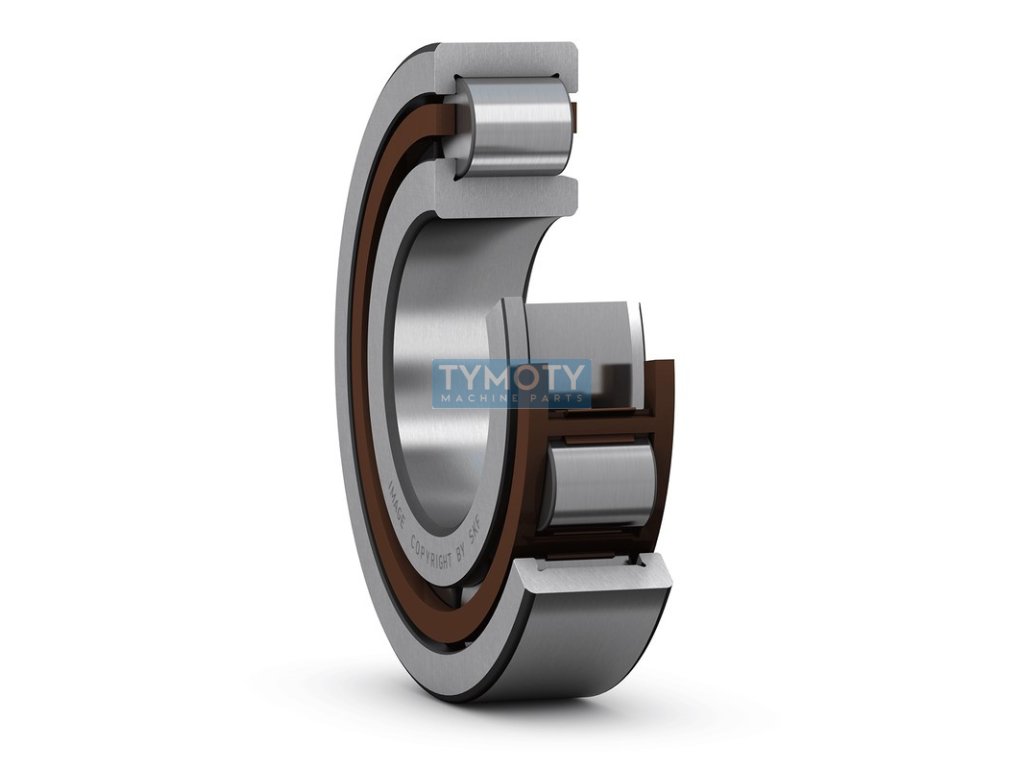

SKF NJ 209 ECP/C3 roller bearing

Product detailed description

The SKF NJ 209 ECP/C3 cylindrical roller bearing is a single-row bearing designed for applications requiring high load capacity and precision. The bearing has an inner diameter of 45 mm, an outer diameter of 85 mm and a width of 19 mm. The bearing design allows axial displacement, which is suitable for applications where thermal expansion or mounting inaccuracies occur.

The bearing is made of high-quality steel, which guarantees its high strength and wear resistance. The inner ring is removable, which facilitates mounting and maintenance. The internal design of the bearing is optimized to improve its operating properties.

The bearing is equipped with a polyamide cage, which ensures uniform distribution of the rollers and reduces friction. The cage is lightweight and resistant to high temperatures, which contributes to the overall efficiency of the bearing. The bearing has no seal, which means it is suitable for applications where protection from external influences is not required.

The bearing has a slightly increased radial clearance C3, which allows it to be used in applications with higher operating temperatures or where greater flexibility is required. The operating temperature range of the bearing is from -30 °C to +120 °C, which allows it to be used in various climatic conditions.

The running accuracy of the bearing corresponds to the dimensional accuracy P0/PN, or ABEC 1, and the running accuracy P6. The bearing does not have insulation against the passage of electric current, which must be taken into account when using it in electrically demanding applications.

The total weight of the bearing is 0.441 kg, which is suitable for applications where the weight of the components is important. The SKF NJ 209 ECP/C3 bearing is ideal for a wide range of industrial applications where reliability and long service life are required.
