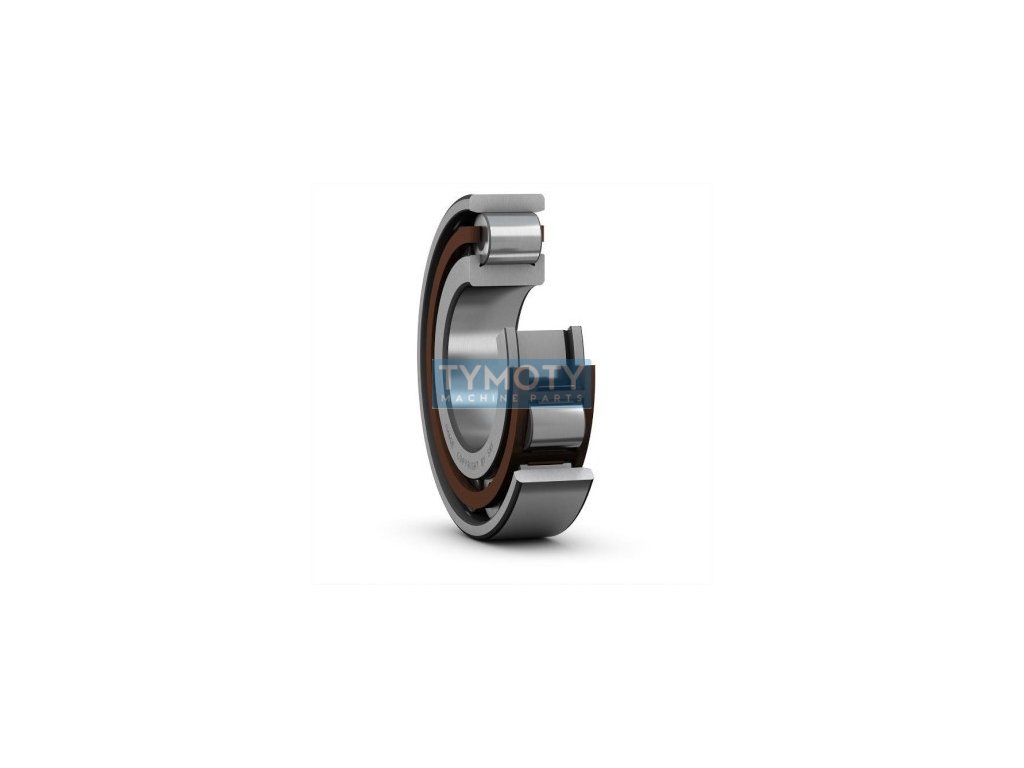

SKF N 204 ECP roller bearing
Code: 330040
Product detailed description
SKF N 204 ECP - single-row separable radial roller bearing with an injection-molded window cage made of glass-fiber reinforced polyamide 6.6 guided by rollers, higher load capacity and normal radial internal clearance.The inner ring of the bearing axial displacement of the shaft relative to the housing in both directions. The rollers are guided by flanges.
The bearing can be divided into an inner ring with a cage with rollers and an outer ring for easier assembly.
Additional parameters
| Category: | Bearings > roller > single row > type N > N 2.. > N 204 |
|---|---|
| Weight: | 0.108 kg |
| EAN: | 7316577061751 |
| Cage: | polyamide |
| Clearance: | normal |
| Diameter D (mm): | 20, 47 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | SKF |
| Material: | steel |
| Maximum temperature °C: | +120 |
| Minimum temperature °C: | -30 |
| Seal: | without gaskets |
| The shape of the outer ring: | without groove / lubrication hole |
| Width B (mm): | 14 |
| Značení: | N 204 ECP |
| Typ: | válečkové ložisko |
