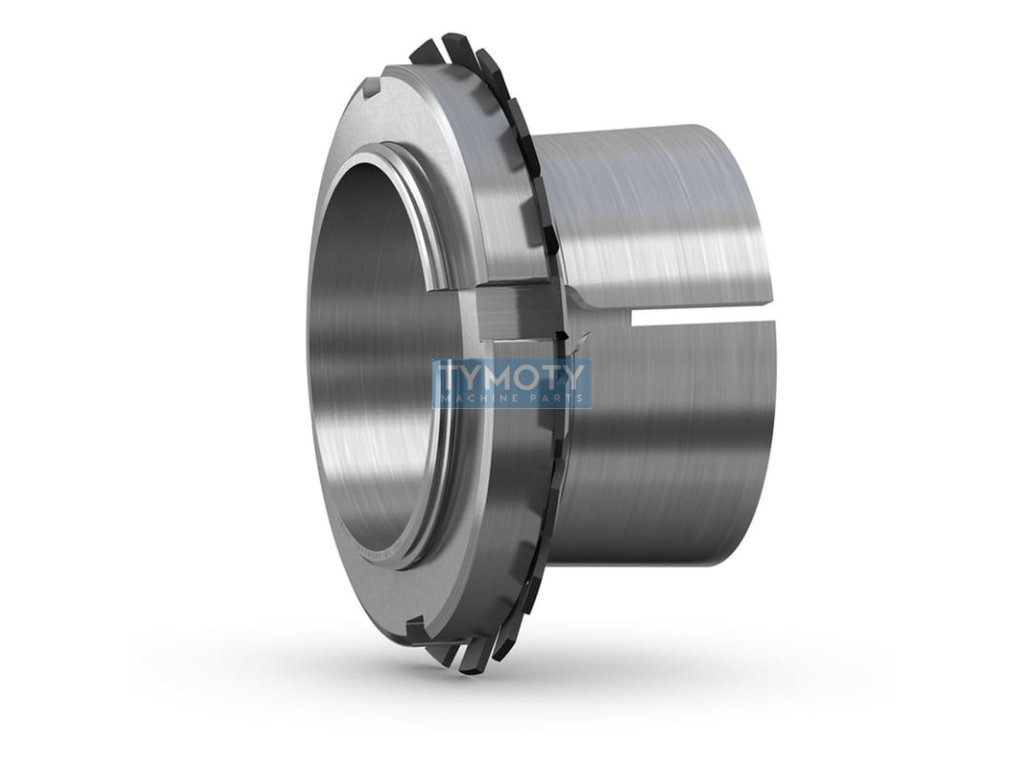

SKF H 315 clamping sleeve
Code: 395125
Product detailed description
SKF H 315 adapter sleeve is a component designed for mounting rolling bearings with a tapered bore on cylindrical shafts. This type of sleeve is designed for metric shafts and is equipped with a tapered bore with a ratio of 1:12, which allows for precise and firm mounting of the bearing on the shaft. The sleeve is made of high-quality steel, which guarantees high strength and resistance to mechanical wear.The dimensions of the sleeve are as follows: inner diameter d is 65 mm, outer diameter D is 98 mm and width B is 55 mm. These dimensions are optimized for standard applications where it is necessary to ensure reliable and stable mounting of the bearing. The total weight of the sleeve is 0.782 kg, which contributes to its robustness and stability during installation.
SKF H 315 is supplied with a lock plate and nut, which facilitates installation and ensures correct mounting of the bearing. The locking plate serves to fix the nut and prevent it from loosening during operation, thereby increasing the overall safety and reliability of the system.
This clamping sleeve is suitable for standard applications where reliable and precise mounting of the bearing on the shaft is required. Thanks to its design and material properties, it is an ideal choice for various industrial sectors where the emphasis is on quality and long service life of components.
Additional parameters
| Category: | Bearings > bearing accessories > clamping bushings > standard d1=14 to 190 mm > d1=65 mm > H315 B1=55 mm |
|---|---|
| Weight: | 0.82 kg |
| EAN: | 7316577008558 |
| Diameter D (mm): | 65, 98 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | SKF |
| Material: | steel |
| Width B (mm): | 55 |
| Značení: | H 315 |
| Typ: | upínací pouzdro |
