SKF GEZ 108 ES-2RS thumb joint bearing steel/steel

Product detailed description

SKF GEZ 108 ES-2RS is a radial spherical plain bearing with inch dimensions, constructed of steel, which ensures high strength and wear resistance. This bearing is designed for applications where combined loads, mainly radial and axial, need to be carried.

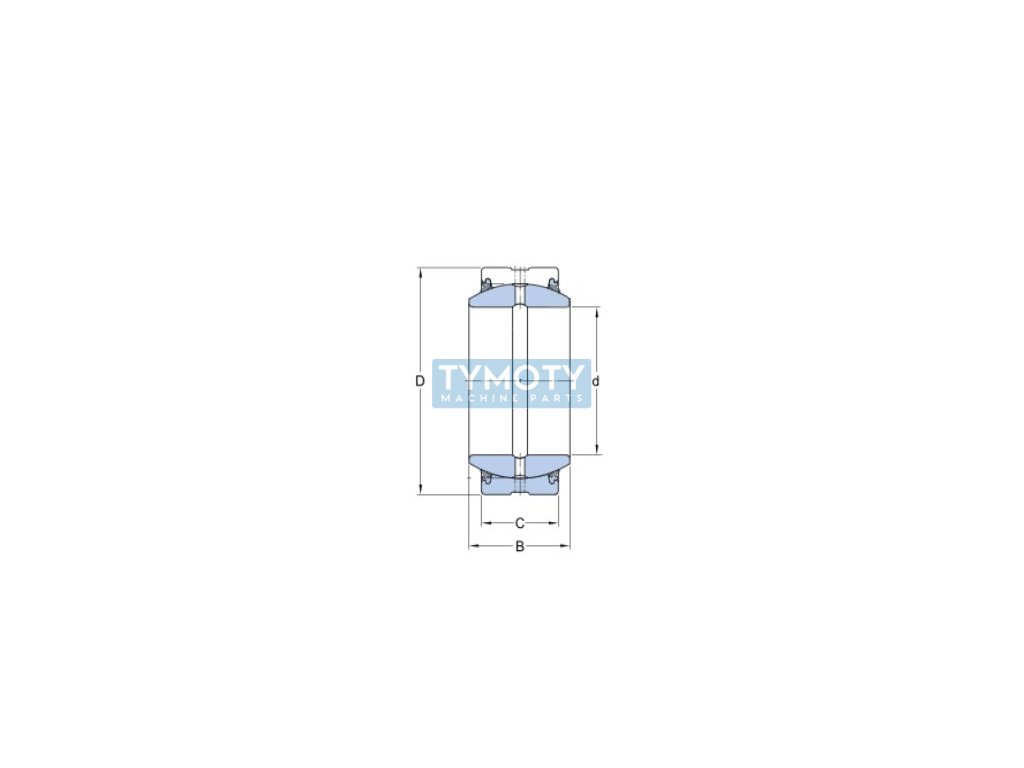

The bearing has an inner diameter (d) of 38.100 mm, an outer diameter (D) of 61.913 mm and a width (B) of 33.325 mm. The width C is 28.575 mm. The inner ring is of standard design and the hole profile is cylindrical, which allows easy assembly and disassembly in various mechanical systems.

The steel/steel material composition ensures high load capacity and resistance to dynamic loads. The bearing is equipped with a double-sided rubber lip seal, which provides protection against contamination and dirt, thus extending the bearing life. The operating temperature is in the range of -30 °C to +130 °C, which allows its use in various climatic conditions.

The bearing is equipped with a circumferential groove with lubrication holes, which allows for effective lubrication and maintenance, thereby increasing its service life and reliability. The weight of the bearing is 0.42 kg, which is optimal for its design and application in various industrial sectors.

SKF GEZ 108 ES-2RS is designed for applications that require regular maintenance, which includes checking and replenishing lubricant. Due to its design and material properties, it is suitable for use in demanding conditions where high reliability and long service life are required.
