SKF GEH 30 ES-2RS articulated bearing steel/steel

Product detailed description

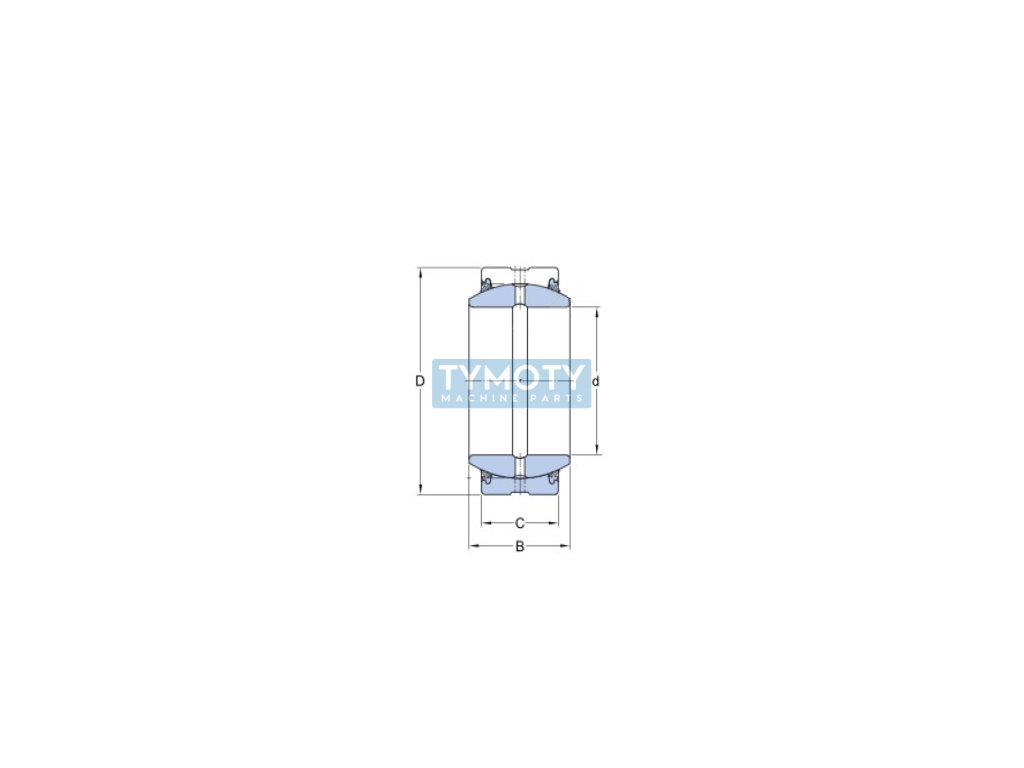

SKF GEH 30 ES-2RS is a radial spherical plain bearing designed for applications requiring high durability and reliability. This component is made of steel, which ensures its high strength and wear resistance. The bearing has an inner diameter of 30 mm, an outer diameter of 55 mm and a width of 32 mm, with an inner ring width of 20 mm.

The bearing is equipped with a double-sided rubber lip seal, which provides protection against dirt ingress and lubricant retention, thereby extending the bearing life. The inner ring is widened on both sides, which allows for better load distribution and increases the stability of the bearing during operation.

Lubrication is provided through a circumferential groove with lubrication holes, which allows regular maintenance and ensures optimal operating conditions. The bearing is designed as a maintenance-free component, which means that regular lubrication is required to maintain its functionality.

This type of bearing is suitable for applications where high radial loads are present and where high precision and reliability are required. It is ideal for use in industrial machinery, construction equipment and other applications where reliable transmission of forces and movements is required. The total weight of the bearing is 0.35 kg, which allows for easy handling and installation.
