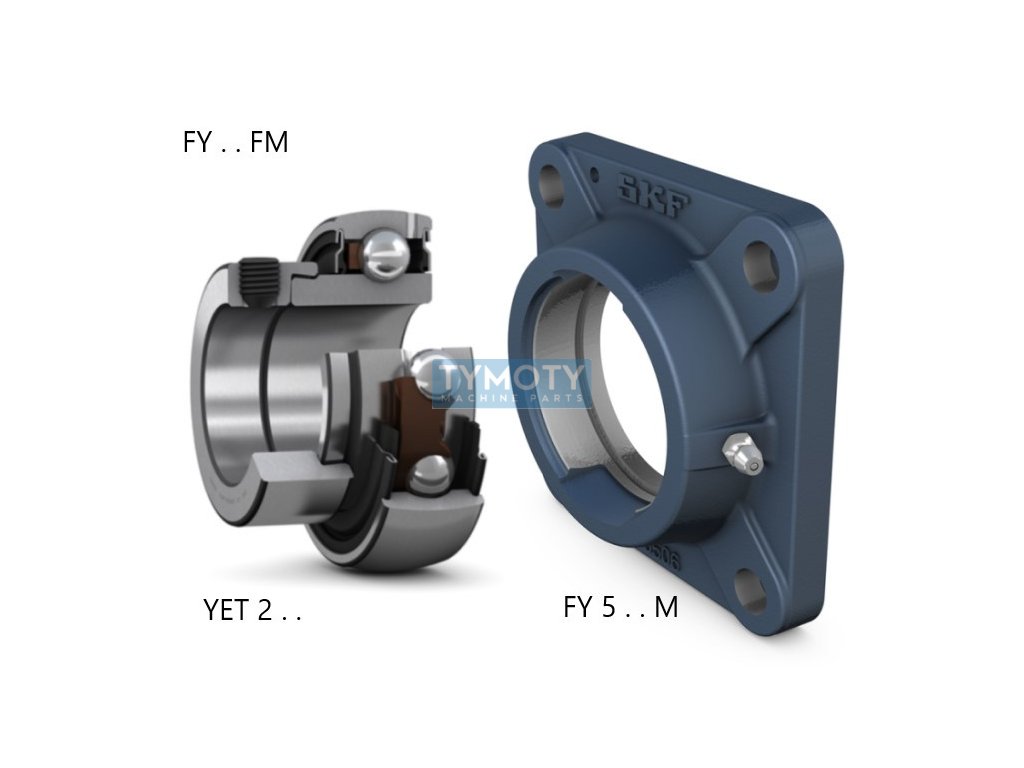

SKF FY 35 FM flange bearing unit
Code: 387578
Product detailed description
SKF FY 35 FM is a flanged bearing unit designed for applications requiring a reliable and durable solution for supporting rotating shafts. This unit is equipped with a rolling bearing with an inner diameter of 35 mm, an outer diameter of 118 mm and a width of 50.4 mm. The bearing unit is made of high-quality gray cast iron, while the bearing itself is made of standard steel for rolling bearings, which ensures high strength and wear resistance.The unit is designed with a quadrangular shape and includes four mounting holes that allow easy installation on various surfaces. The bearing is secured with an eccentric mounting ring that provides a reliable and firm fit on the shaft. The bearing unit is equipped with a simple seal that protects the internal components from dirt and moisture, thus extending the life of the bearing.
The operating temperature range of the unit is from -30 °C to +120 °C, which allows it to be used in various industrial conditions. The total weight of the bearing unit is 1.35 kg. The surface of the unit is dark blue, which is typical of SKF products, which is known for its high quality and reliability in the field of bearings and bearing solutions. This bearing unit is ideal for applications where high precision and resistance to mechanical stress are required.
Additional parameters
| Category: | Bearings > bearing units > with Y bearings > quadrangular > ? 200 beds with eccentric narrow (FY..FM, PCJ, UYF) > 207 |
|---|---|
| Weight: | 1.333 kg |
| EAN: | 7316570148244 |
| Color: | dark blue |
| Diameter D (mm): | 35, 118 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | SKF |
| Material: | gray cast iron, bearing steel |
| Maximum temperature °C: | +120 |
| Minimum temperature °C: | -20 |
| Seal: | simple seal |
| Width B (mm): | 50,4 |
| Značení: | FY 35 FM |
| Typ: | přirubová ložisková jednotka |
