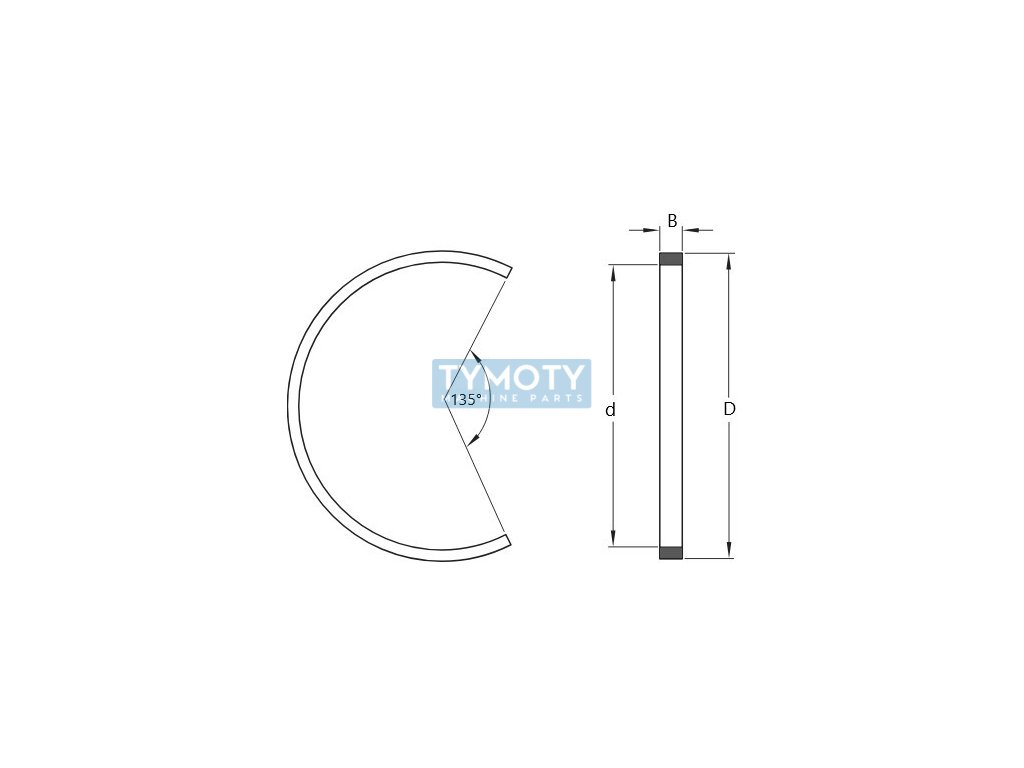

SKF FRB 5/290 positioning ring
Code: 390424
Product detailed description
Guide ring FRB 5/290 SKF - The bearing in the locating position must be axially secured in the housing. If the bearing housing and the bearing width do not match, locating (stabilizing) rings must be used. Usually two locating rings are required per housing. One ring should be placed on each side of the bearing. If only one locating ring is required, it should be installed on the same side as the lock nut.Additional parameters
| Category: | Bearings > bearing bodies > for standard bearings > positioning rings > FR |
|---|---|
| Weight: | 0.173 kg |
| EAN: | 7316570696769 |
| Diameter D (mm): | 275, 290 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | SKF |
| Material: | steel |
| Width B (mm): | 5 |
| Značení: | FRB 5/290 |
| Typ: | distanční kroužek |
