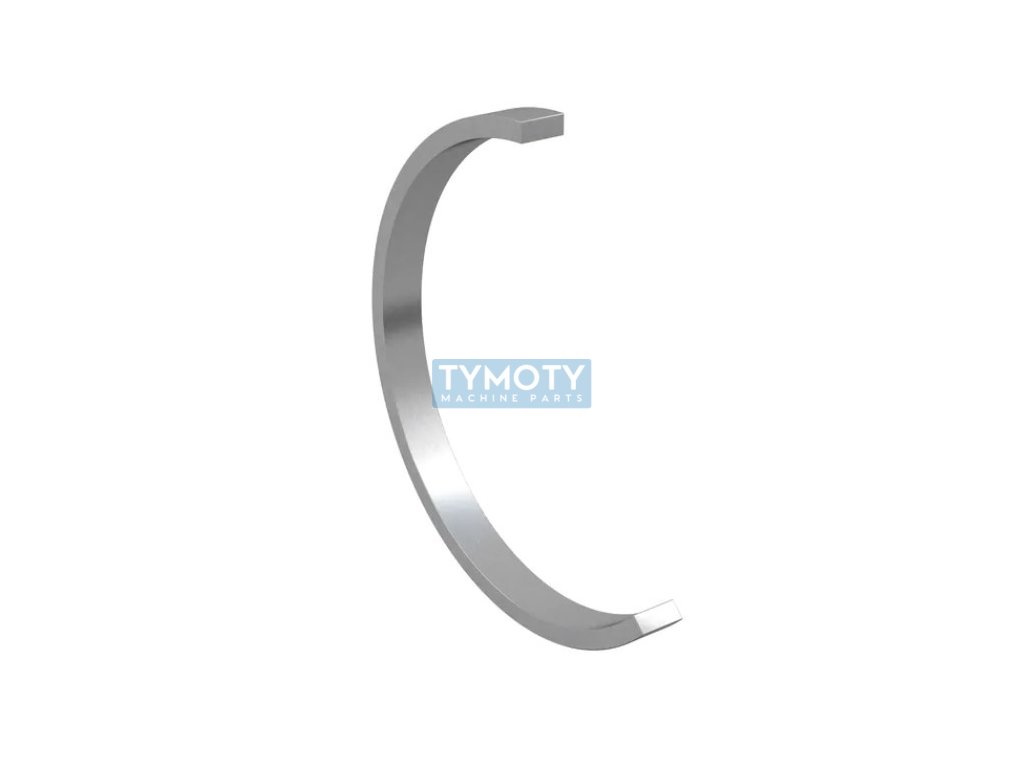

SKF FRB 10/90 positioning ring
Code: 390457
Product detailed description
Guide ring FRB 10/90 SKF - The bearing in the locating position must be axially secured in the housing. If the bearing housing and the bearing width do not match, locating (stabilizing) rings must be used. Usually two locating rings are required per housing. One ring should be placed on each side of the bearing. If only one locating ring is required, it should be installed on the same side as the lock nut.Additional parameters
| Category: | Bearings > bearing bodies > for standard bearings > positioning rings > FR |
|---|---|
| Weight: | 0.066 kg |
| EAN: | 7316570609141 |
| Diameter D (mm): | 90, 82 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | SKF |
| Material: | steel |
| Width B (mm): | 10 |
| Značení: | FRB 10/90 |
| Typ: | distanční kroužek |
