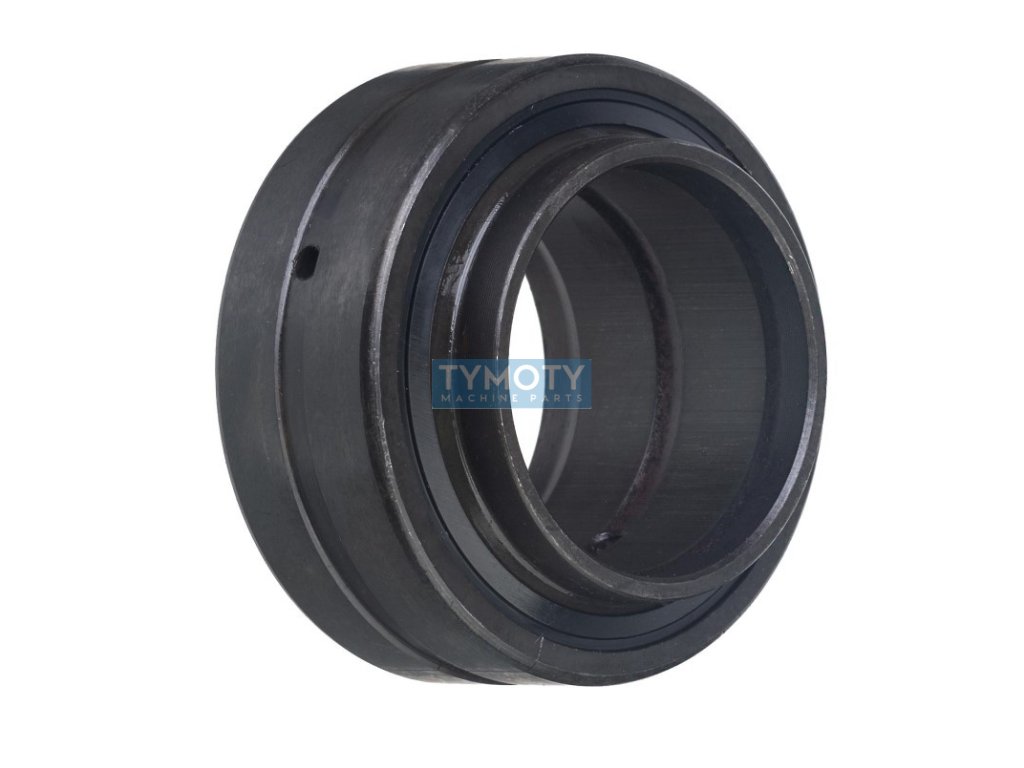

SKF BLRB 365214 B-2RS radial spherical plain bearing
Code: 621848
Product detailed description
SKF BLRB 365214 B-2RS is a radial spherical plain bearing designed for applications requiring high quality and reliability. This bearing is made of steel, which ensures its high strength and wear resistance. The inner diameter of the bearing is 45 mm, the outer diameter is 75 mm and the width is 57 mm, with a C width of 42 mm.The bearing is equipped with a double-sided rubber lip seal, which provides protection against dirt and moisture, thereby extending the life of the bearing. The seal also allows operation in a temperature range from -30 °C to +120 °C, which makes this bearing suitable for a wide range of industrial applications.
The bearing is designed with a circumferential groove and lubrication holes, which allows effective lubrication and reduces the need for frequent maintenance. However, this bearing is categorized as requiring maintenance, which means that regular inspection and lubrication are essential for optimal functionality.
The inner and outer rings are standard, which simplifies the integration of the bearing into existing systems. The total weight of the bearing is 0.89 kg, which is in line with its robust design and the materials used.
SKF BLRB 365214 B-2RS is an ideal choice for applications where high resistance to dynamic loads and reliable operation in harsh conditions are required.
Additional parameters
| Category: | Bearings > slippery > articulated > steel-steel extended sealed, GEM..-2RS, GE..HO-2RS > d=45 mm D=75 mm |
|---|---|
| Weight: | 0.89 kg |
| EAN: | 7316570312614 |
| Diameter D (mm): | 45, 75 |
| Manufacturer's brand: | SKF |
| Maximum temperature °C: | +120 |
| Minimum temperature °C: | -30 |
| Seal: | lip seal on both sides |
| The shape of the outer ring: | standard design |
| Width B (mm): | 57 |
| Značení: | BLRB 365214 B-2RS |
| Typ: | radiální kloubové ložisko |
