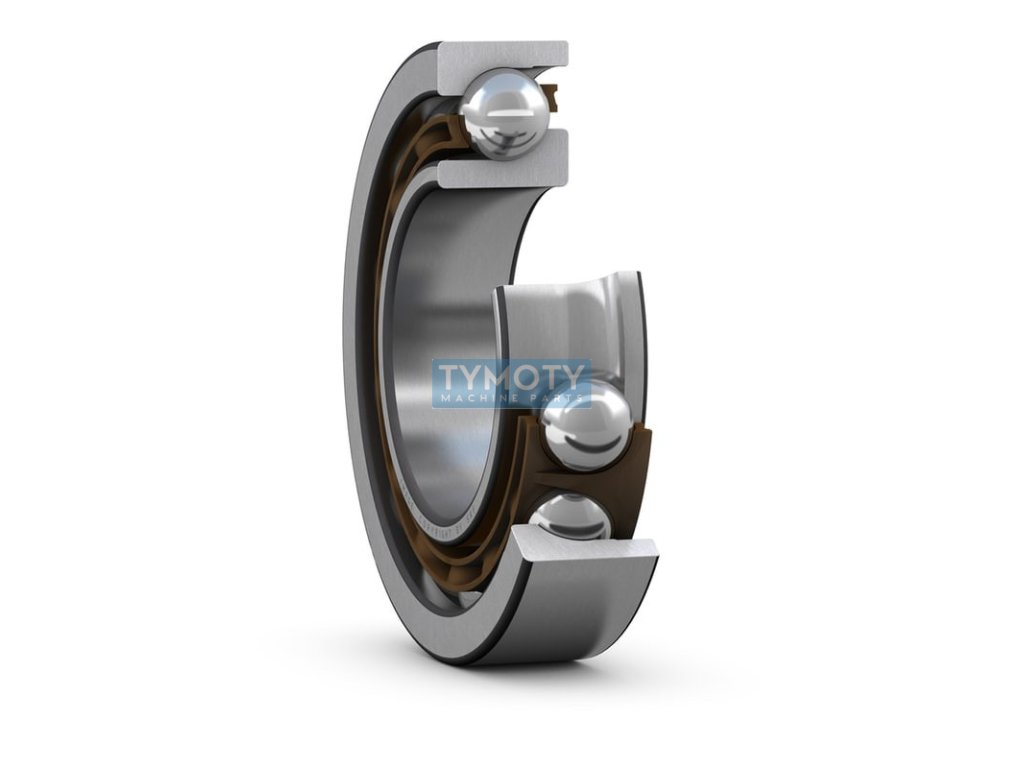

SKF 7307 BEP angular contact ball bearing
Code: 325475
Product detailed description
SKF 7307 BEP - standard non-separable single row angular contact ball bearing, with a contact angle of 40°, optimized internal design and an injection-molded window cage made of glass-fibre reinforced polyamide 6.6 guided by balls. in one direction only, therefore it is usually adjusted against the second bearing.The internal clearance of single row angular contact ball bearings is achieved only after mounting and depends on the adjustment of the axial position relative to the second bearing, which ensures axial guidance in the opposite direction.
Additional parameters
| Category: | Bearings > ball bearing with diagonal contact > 73.. standard > 7307 |
|---|---|
| Weight: | 0.444 kg |
| EAN: | 7316577065872 |
| Angle ( ° ): | 40° |
| Cage: | polyamide |
| Clearance: | normal |
| Diameter D (mm): | 80, 35 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | SKF |
| Material: | steel |
| Maximum temperature °C: | +120 |
| Minimum temperature °C: | -20 |
| Seal: | without gaskets |
| The shape of the outer ring: | without flange / groove |
| Width B (mm): | 21 |
| Značení: | 7307 BEP |
| Typ: | kuličkové ložisko s kosoúhlým stykem |
