SKF 7216 ACDGA/P4A bearing

Product detailed description

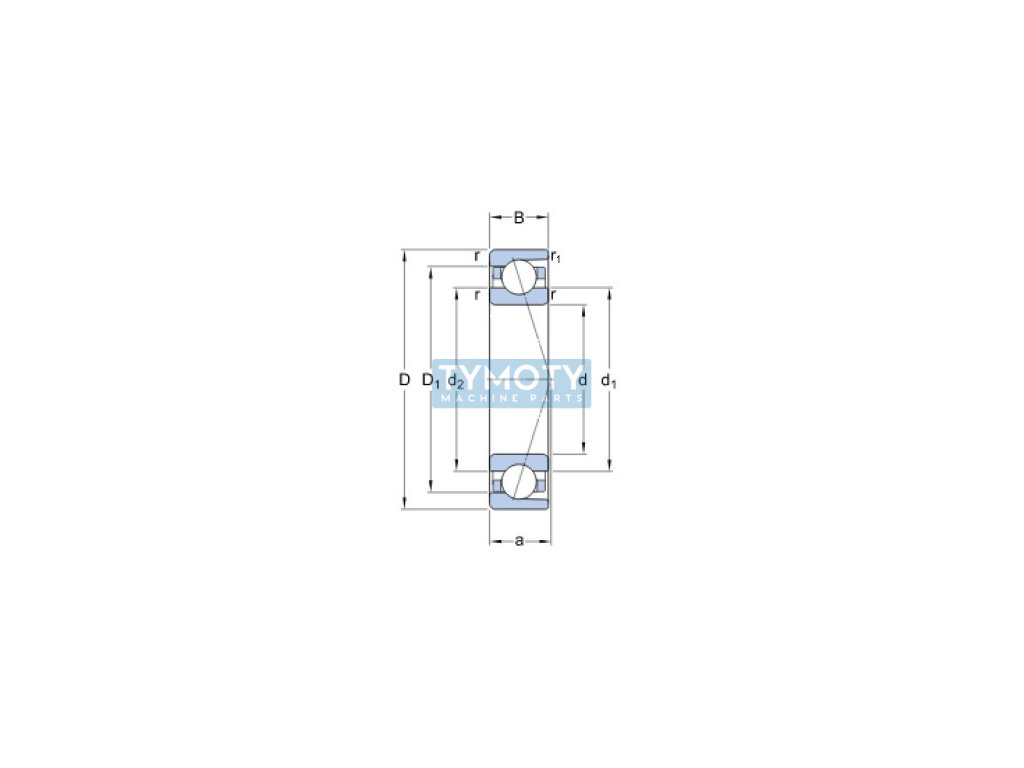

SKF 7216 ACDGA/P4A - precision non-separable single row angular contact ball bearing, with a contact angle of 25°, a lightweight phenolic resin cage reinforced with textile fabric guided by the outer ring seat. The bearing can only carry axial loads in one direction, therefore it is usually set against the second bearing.
The internal clearance of single row angular contact ball bearings is achieved only after assembly and depends on the axial position adjustment relative to the second bearing, which provides axial guidance in the opposite direction. They are manufactured so that when assembled for axial loads in one direction, i.e. in tandem, or for axial loads in both directions, i.e. back to back in \O\ or front to back in \X\"" a predetermined internal clearance or preload or uniform load distribution was achieved without the use of shims."""""""""""""""""""""""""""""""""""""""""""""""""
