SKF 7215 BECBP bearing
Code: 325157
Product detailed description

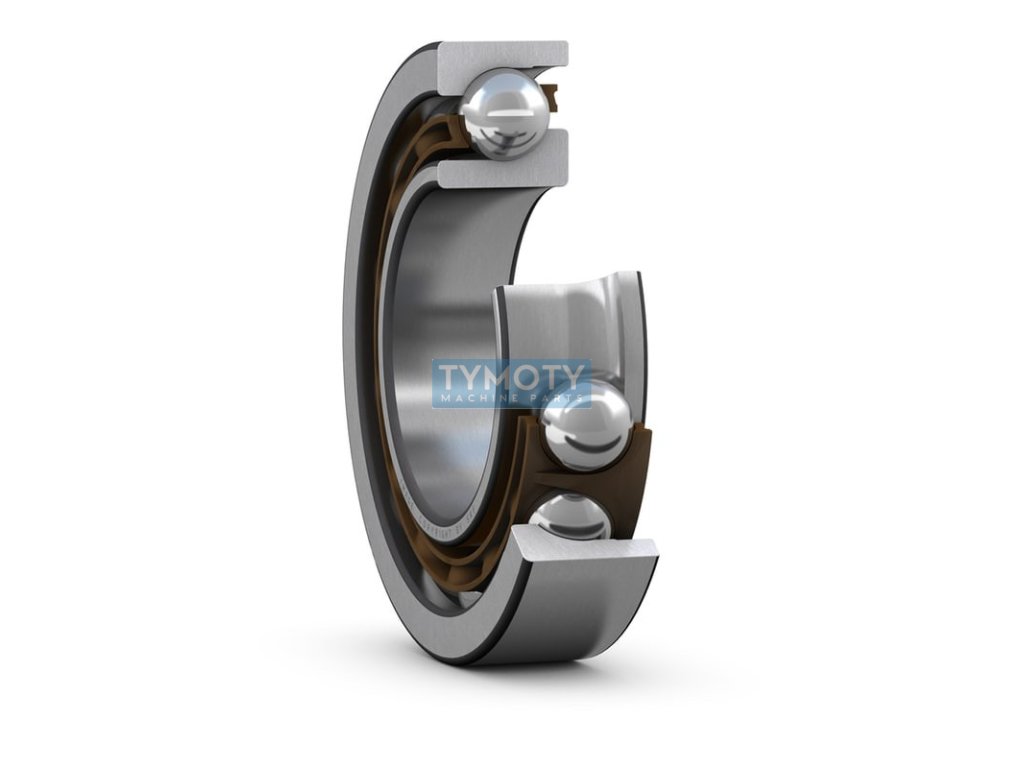

SKF Explorer 7215 BECBP - universal matched non-separable single row angular contact ball bearing, with a contact angle of 40°, optimized internal design, injection-molded window cage made of glass-fiber reinforced polyamide 6.6 with clearance.Bearings for universal matching are mounted in pairs and are manufactured so that when assembled for axial load in one direction, i.e. in tandem, or for axial load in both directions, i.e. back to back in O or face to face in X, a predetermined internal shim clearance is achieved.
Universal matched bearings with the Explorer designation are manufactured with dimensional accuracy corresponding to class P6 and with running accuracy corresponding to class P5.
Additional parameters
| Category: | Bearings > ball bearing with diagonal contact > 72.. universally matchable > 7215 |
|---|---|
| Weight: | 1.16 kg |
| EAN: | 7316576633577 |
| Angle ( ° ): | 40° |
| Cage: | polyamide |
| Clearance: | normal |
| Diameter D (mm): | 75, 130 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | SKF |
| Material: | steel |
| Maximum temperature °C: | +120 |
| Minimum temperature °C: | -20 |
| Seal: | without gaskets |
| The shape of the outer ring: | without flange / groove |
| Width B (mm): | 25 |
| Značení: | 7215 BECBP |
| Typ: | kuličkové ložisko s kosoúhlým stykem |
