SKF 7206 CDGA/P4A bearing
Code: 325064
Product detailed description

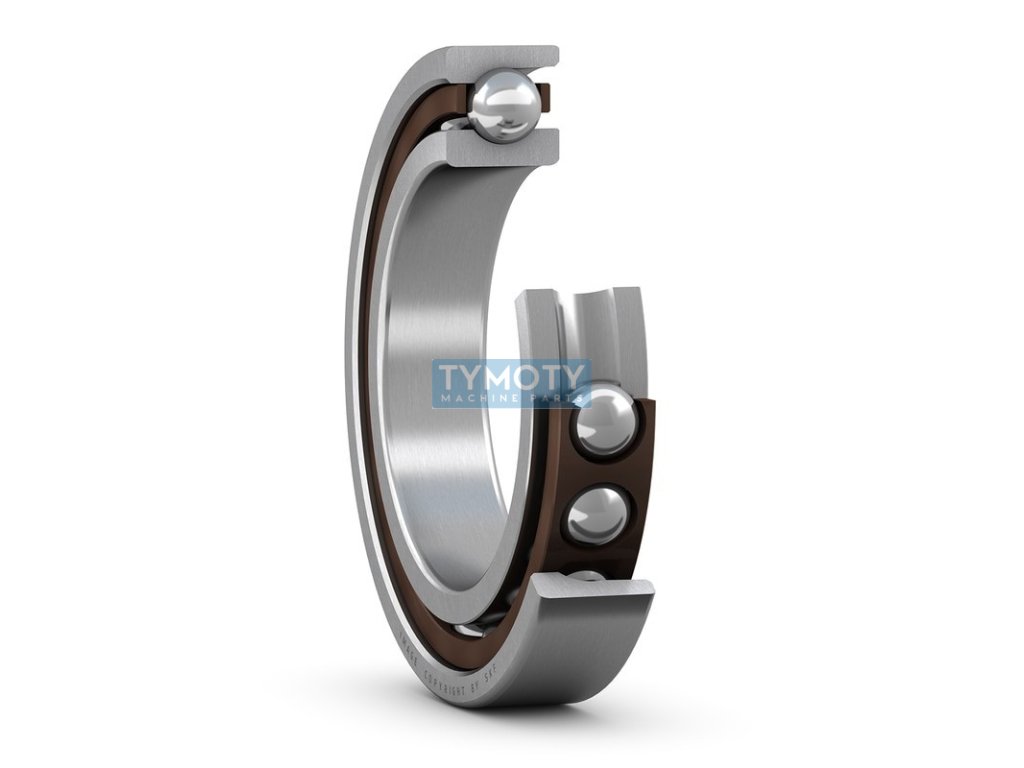

SKF 7206 CDGA/P4A - precision non-separable single row angular contact ball bearing, with a contact angle of 15°, a lightweight phenolic resin cage reinforced with textile fabric guided by the outer ring seat. can only carry axial loads in one direction, therefore it is usually set against the second bearing.The internal clearance of single row angular contact ball bearings is achieved only after assembly and depends on the axial position adjustment relative to the second bearing, which provides axial guidance in the opposite direction.
Additional parameters
| Category: | Bearings > high precision (spindle) > 72.. ball bearing with diagonal contact > standard > contact angle 15° |
|---|---|
| Weight: | 0.194 kg |
| EAN: | 7316570640991 |
| Angle ( ° ): | 15° |
| Cage: | polyamide |
| Diameter D (mm): | 30, 62 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | SKF |
| Material: | steel |
| Maximum temperature °C: | +100 |
| Minimum temperature °C: | -30 |
| Seal: | without gaskets |
| Width A (mm): | 14,2 |
| Width B (mm): | 16 |
| Značení: | 7206 CDGA/P4A |
| Typ: | vřetenové ložisko |
