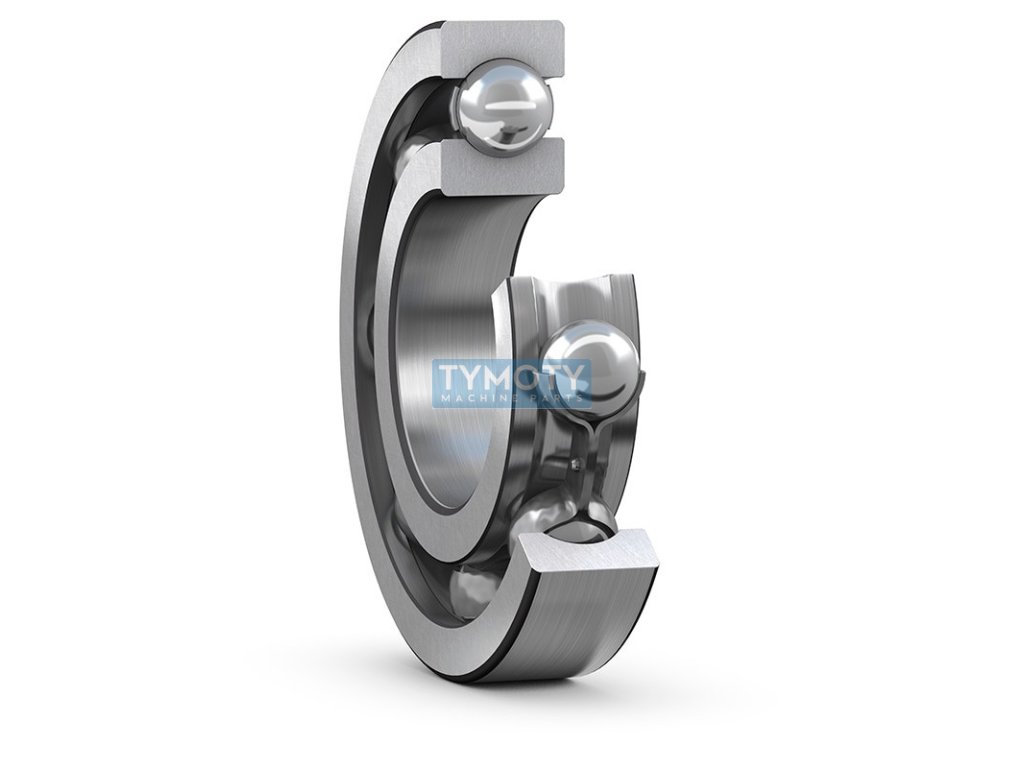

SKF 6408 deep groove ball bearing

Product detailed description

SKF 6408 is a non-separable single row deep groove ball bearing designed for a wide range of industrial applications. This bearing is sealless, meaning it is open and allows free movement of lubricant. It is equipped with a steel cage that is guided by balls, ensuring optimal load distribution and minimizing friction.

The bearing has an inner diameter (d) of 40 mm, an outer diameter (D) of 110 mm and a width (B) of 27 mm. These dimensions are standardized, allowing easy integration into various mechanical systems. The bore profile is cylindrical, which is common for this type of bearing, and the outer ring is without a flange or groove.

The material used to manufacture the bearing is standard rolling bearing steel, which provides high wear resistance and long service life. The bearing has normal radial clearance, which means that it is suitable for applications where standard operating conditions are required without extreme loads or temperature fluctuations.

The operating temperature range of the bearing is from -20 °C to +120 °C, which allows its use in various climatic conditions. The running accuracy is in class P0/PN, or ABEC 1, which corresponds to the basic level of accuracy for common applications.

The weight of the bearing is 1.23 kg, which is important from the point of view of handling and installation. The bearing is not equipped with insulation against electrical current penetration, which must be taken into account in applications where this factor could be critical.

SKF 6408 is an ideal choice for applications where reliability and robustness are required, while its design features allow for effective operation in various mechanical systems.
