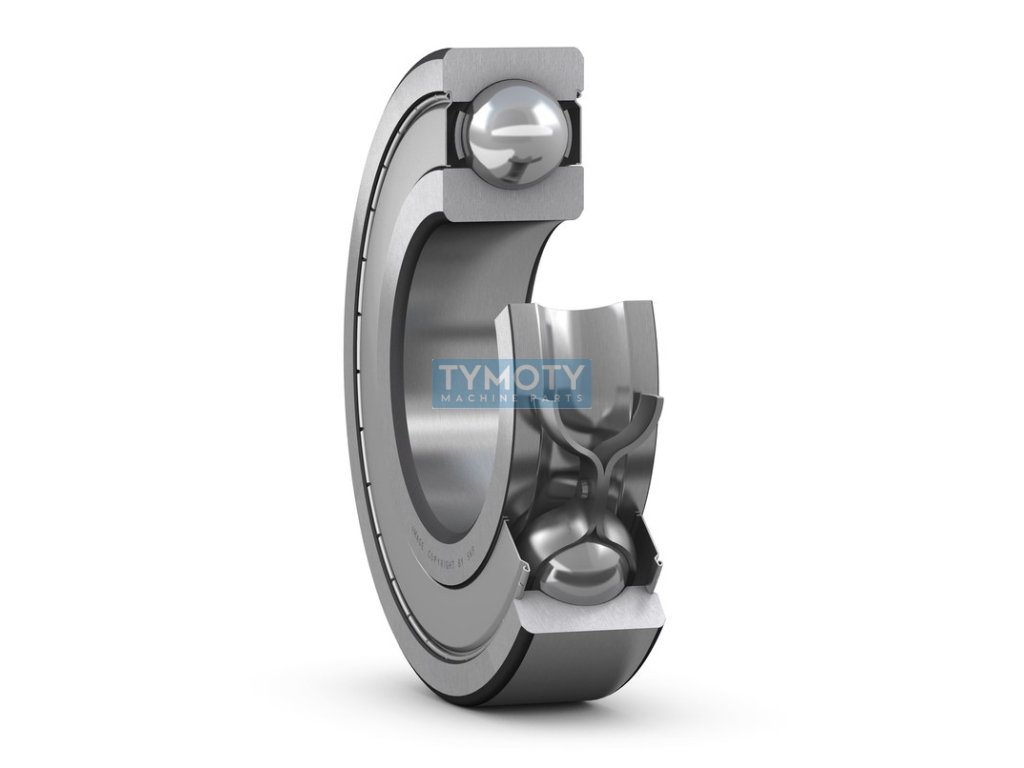

SKF 628/4-2Z deep groove ball bearing
Code: 310435
Product detailed description
SKF bearing 628/4 2Z - non-separable single-row radial ball bearing with a steel cage guided by balls with non-contact sheet metal seals on both sides and normal radial clearance. The cover plates of the bearing 628/4-2Z are pressed into grooves on the outer ring and fit against the smooth inner ring. The bearing 628/4 2Z is designed for mounting with a rotating inner ring and is filled with high-quality lubricant with a temperature range from -40°C to +100°C for the entire service life of the bearing. If the outer ring rotates, lubricant may leak at higher speeds.Additional parameters
| Category: | Bearings > ball > miniature d=0.6 to 9mm > d = 4 mm > 628/4 (D=9 B=3.5) |
|---|---|
| Weight: | 0.001 kg |
| EAN: | 7316570467222 |
| Cage: | steel |
| Clearance: | normal |
| Diameter D (mm): | 9, 4 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | SKF |
| Material: | steel |
| Maximum temperature °C: | +120 |
| Minimum temperature °C: | -20 |
| Seal: | double-sided cover, sheet metal |
| The shape of the outer ring: | without flange / groove |
| Width B (mm): | 3,5 |
| Značení: | 628/4-2Z |
| Typ: | kuličkové ložisko |
