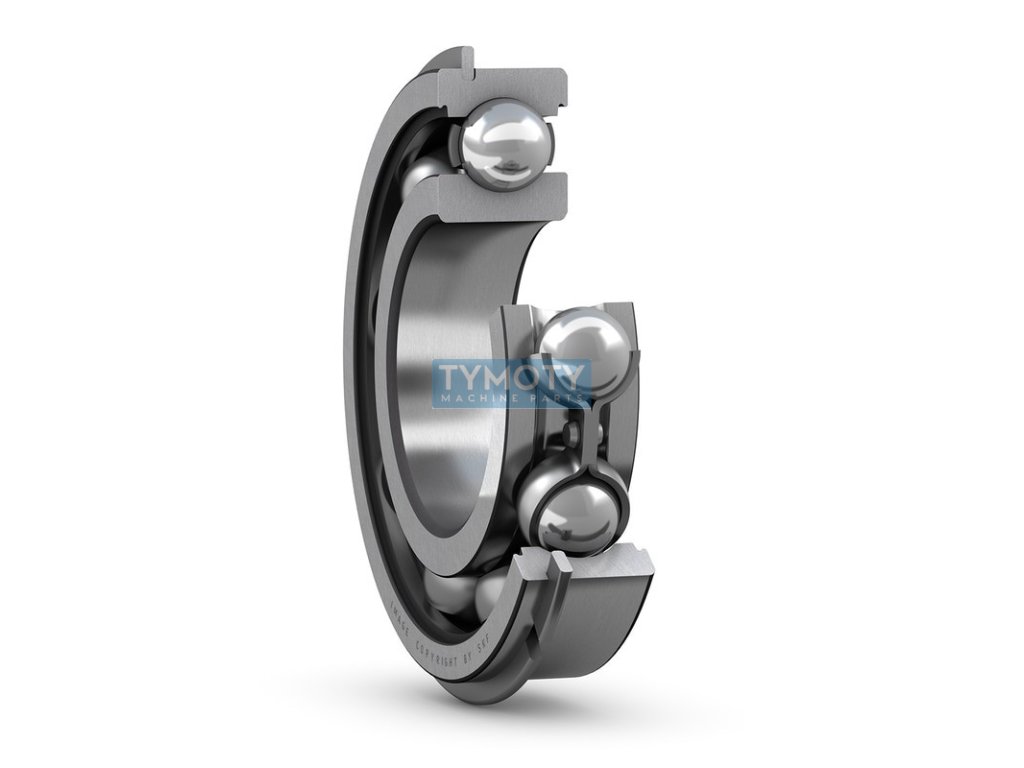

SKF 6209 NR deep groove ball bearing
Code: 313414
Product detailed description
SKF Explorer bearing 6209 NR - non-separable single row deep groove ball bearing, open without seal, with steel cage, with normal radial clearance and with a groove for a snap ring. The cage of the 6209 NR bearing is guided by balls. The bearing is supplied with a snap ring SP 85.SKF Explorer class 6209 NR bearings represent a new group of high-performance rolling bearings, offering a significant increase in the main operating parameters, such as noise, vibration, heat generation, operational reliability, dynamic load capacity and are manufactured with a higher. Dimensional accuracy corresponds to accuracy class P6.
Additional parameters
| Category: | Bearings > ball > single row 62xx > 6209 > snap ring groove |
|---|---|
| Weight: | 0.413 kg |
| EAN: | 7316577094353 |
| Cage: | steel |
| Clearance: | normal |
| Diameter D (mm): | 85, 45 |
| Groove n: | 1x with locking ring |
| Hole profile: | cylindrical |
| Manufacturer's brand: | SKF |
| Material: | steel |
| Maximum temperature °C: | +120 |
| Minimum temperature °C: | -20 |
| Seal: | without gaskets |
| The shape of the outer ring: | groove with circlip |
| Width B (mm): | 19 |
| Značení: | 6209 NR |
| Typ: | kuličkové ložisko |
