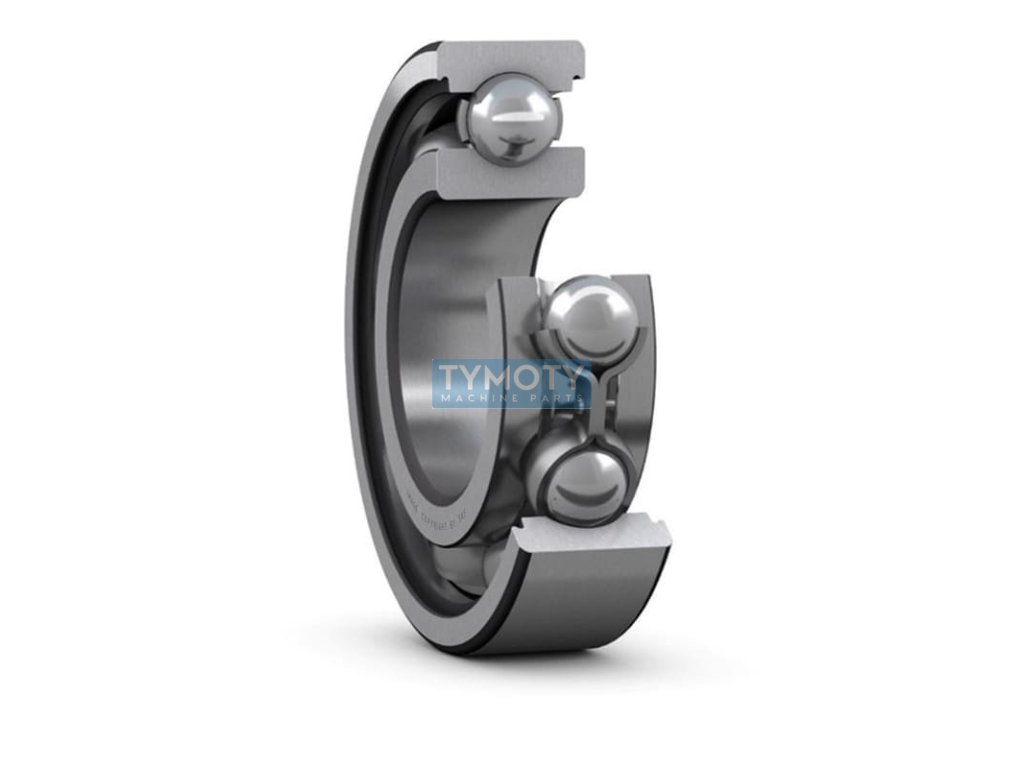

SKF 6209 deep groove ball bearing
Code: 313388
Product detailed description
SKF Explorer bearing 6209 - non-separable single row radial ball bearing open without seal with steel cage and normal radial clearance. The cage of the 6209 bearing is guided by balls.SKF 6209 Explorer class bearings represent a new group of high-performance rolling bearings, offering a significant increase in the main operating parameters, such as noise, vibration, heat generation, operational reliability, dynamic load capacity and are manufactured with higher accuracy than normal. The dimensional accuracy corresponds to accuracy class P6.
Additional parameters
| Category: | Bearings > ball > single row 62xx > 6209 > open without seal |
|---|---|
| Weight: | 0.404 kg |
| EAN: | 7316577613028 |
| Cage: | steel |
| Clearance: | normal |
| Diameter D (mm): | 85, 45 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | SKF |
| Material: | steel |
| Maximum temperature °C: | +120 |
| Minimum temperature °C: | -20 |
| Seal: | without gaskets |
| The shape of the outer ring: | without flange / groove |
| Width B (mm): | 19 |
| Značení: | 6209 |
| Typ: | kuličkové ložisko |
