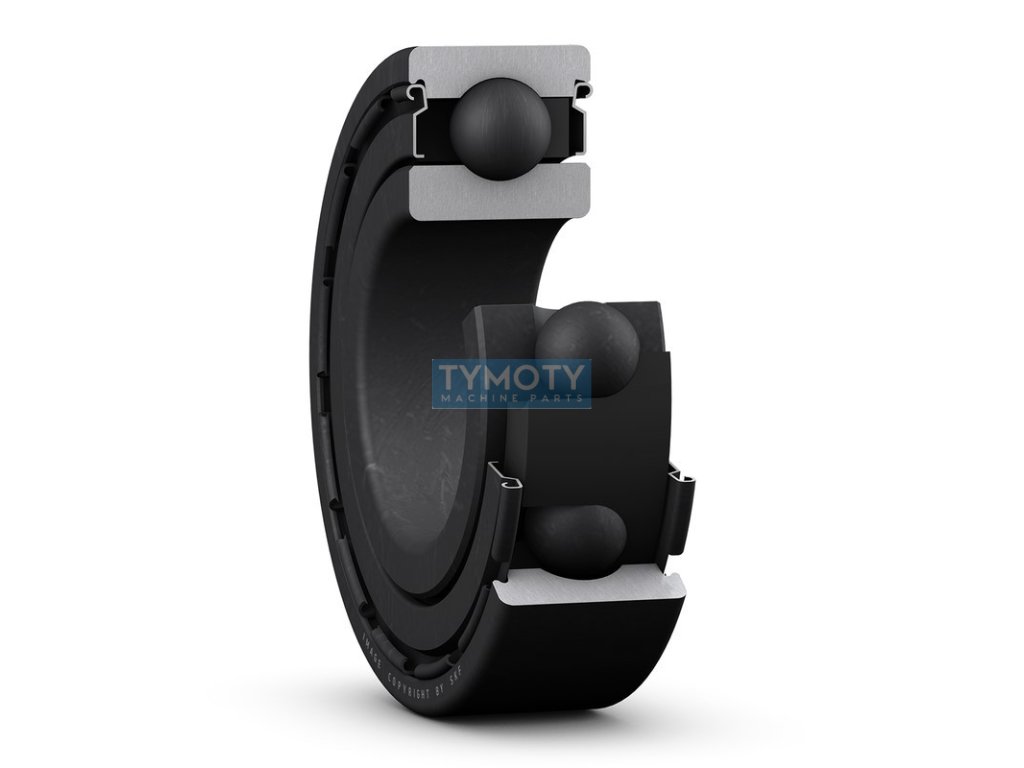

SKF 6204-2Z/VA228 deep groove ball bearing
Code: 312581
Product detailed description
SKF bearing 6204-2Z/VA228 - non-separable single row radial ball bearing with radial clearance four times greater than C5 for high temperatures from -150 °C to +350 °C. Bearing 6204 2Z VA228 has sheet metal covers that cover the bearing and at the same time guide the pure graphite crown cage. The bearing can only operate up to 100 revolutions per minute.Additional parameters
| Category: | Bearings > ball > single row 62xx > 6204 > for low and high temperatures |
|---|---|
| Weight: | 0.103 kg |
| EAN: | 7316571507262 |
| Cage: | graphite |
| Clearance: | C5 - very strongly enlarged |
| Diameter D (mm): | 20, 47 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | SKF |
| Material: | phosphated steel |
| Maximum temperature °C: | +350 |
| Minimum temperature °C: | -150 |
| Seal: | double-sided cover, sheet metal |
| The shape of the outer ring: | without flange / groove |
| Width B (mm): | 14 |
| Značení: | 6204-2Z/VA228 |
| Typ: | kuličkové ložisko |
