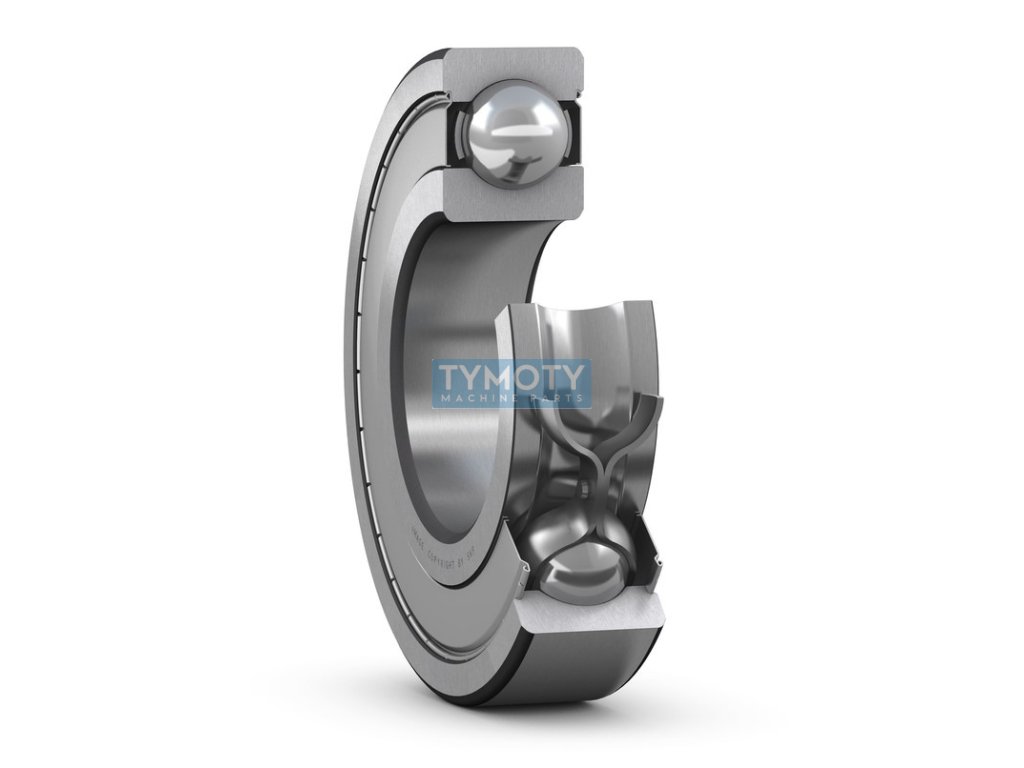

SKF 6204-2Z/C3LHT23 deep groove ball bearing
Code: 312580
Product detailed description
SKF bearing 6204-2Z/C3LHT23 - non-separable single-row radial ball bearing with a steel cage guided by balls with a non-contacting sheet metal seal on both sides and with a higher radial clearance than normal for higher temperatures. The cover plate of the bearing 6204 2Z C3 fits the smooth inner ring. The bearing 6204 2Z C3 LHT23 is designed for storage with a rotating inner ring and is filled with high-quality lubricant with a temperature range from -40 °C to +140 °C for the entire service life of the bearing. If the outer ring rotates, lubricant may leak at higher speeds.Additional parameters
| Category: | Bearings > ball > single row 62xx > 6204 > for low and high temperatures |
|---|---|
| Weight: | 0.105 kg |
| EAN: | 7316570210781 |
| Cage: | steel |
| Clearance: | C3 - slightly enlarged |
| Diameter D (mm): | 20, 47 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | SKF |
| Material: | steel |
| Maximum temperature °C: | +145 |
| Seal: | double-sided cover, sheet metal |
| Width B (mm): | 14 |
| Značení: | 6204-2Z/C3LHT23 |
| Typ: | kuličkové ložisko |
