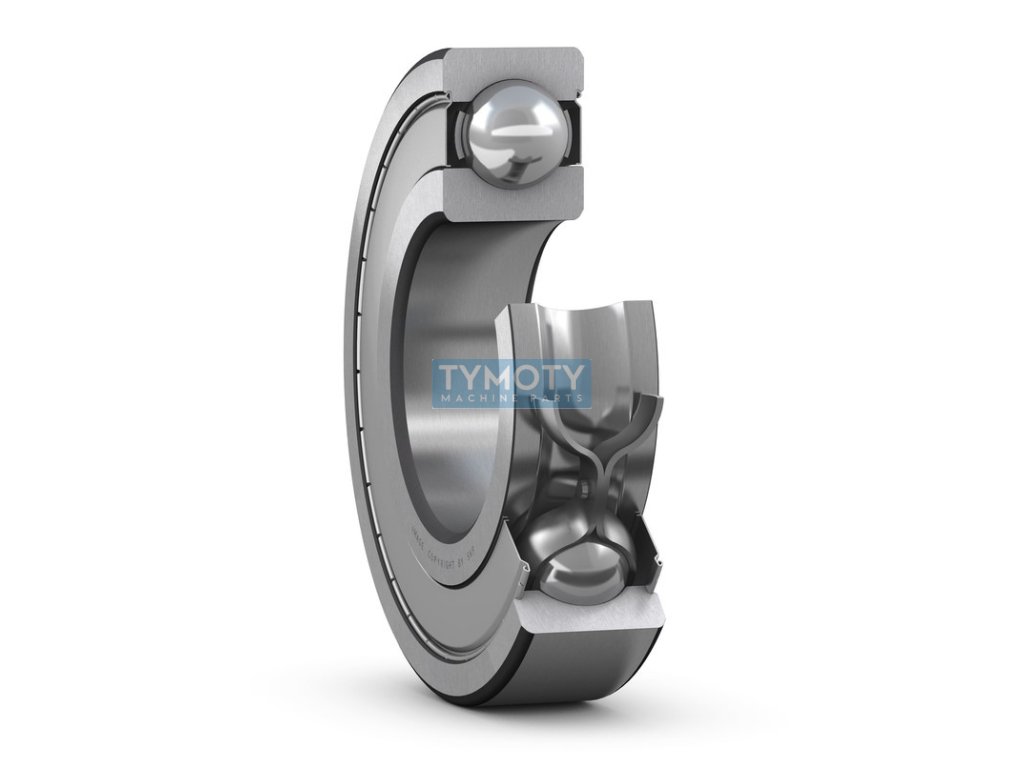

SKF 6203-2Z/WT deep groove ball bearing

Product detailed description

The SKF 6203-2Z/WT deep groove ball bearing is a single row bearing with precise dimensions and design features that make it suitable for a wide range of industrial applications. This bearing has an inner diameter (d) of 17 mm, an outer diameter (D) of 40 mm and a width (B) of 12 mm. It is made of high-quality standard steel for rolling bearings, which guarantees its high durability and long service life. The bearing is equipped with a double-sided sheet metal cover that provides protection against dirt and contamination, thereby extending its service life. The internal radial clearance is normal, which is suitable for most standard applications. The bearing is lubricated with high-temperature grease, which allows it to operate in the temperature range from -40 °C to +160 °C. This range is ideal for applications where high temperatures are present. The running accuracy of the bearing is in class P0/PN, respectively. ABEC 1, which guarantees reliable and smooth operation under normal operating conditions. The bearing is equipped with a pressed steel cage, which ensures stability and uniform load distribution on the rolling elements. The inner hole profile is cylindrical and the outer ring is without flanges or grooves, which allows for easy installation and removal.

With a weight of 0.066 kg, this bearing is lightweight, which contributes to reducing the overall weight of the equipment in which it is used. The bearing is not insulated against the passage of electric current, which is important to consider when using it in electrical applications. Overall, the SKF 6203-2Z/WT is a reliable choice for applications requiring high quality and resistance to temperature fluctuations.
