SKF 61901-2Z deep groove ball bearing
Code: 318615
Product detailed description

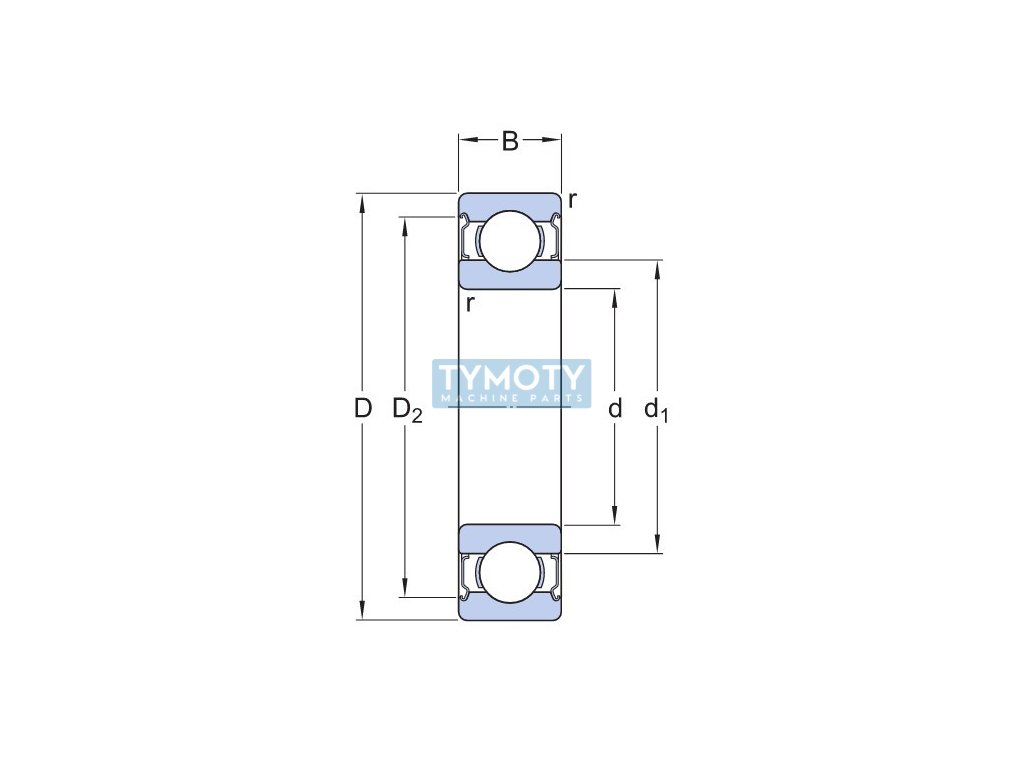

SKF bearing 61901 2Z - non-separable single-row radial ball bearing with a steel cage guided by balls with a non-contacting sheet metal seal on both sides and normal radial clearance. The cover plates of the 61901-2Z bearing are pressed into grooves on the outer ring and fit against the smooth inner ring. The 61901-2Z bearing is designed for mounting with a rotating inner ring and is filled with high-quality lubricant with a temperature range from -40°C to +100°C for the entire service life of the bearing. If the outer ring rotates, lubricant may leak at higher speeds. The SKF 61901 2Z bearing is marked as the 6901 ZZ bearing by manufacturers NSK, NTN, EZO.Additional parameters
| Category: | Bearings > ball > single row 619xx (69xx) > 61901, 6901 |
|---|---|
| Weight: | 0.012 kg |
| EAN: | 7316577101174 |
| Cage: | steel |
| Clearance: | normal |
| Diameter D (mm): | 12, 24 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | SKF |
| Material: | steel |
| Maximum temperature °C: | +120 |
| Minimum temperature °C: | -20 |
| Seal: | double-sided cover, sheet metal |
| The shape of the outer ring: | without flange / groove |
| Width B (mm): | 6 |
| Značení: | 61901-2Z |
| Typ: | kuličkové ložisko |
