SKF 619/9-2Z deep groove ball bearing
Code: 310928
Product detailed description

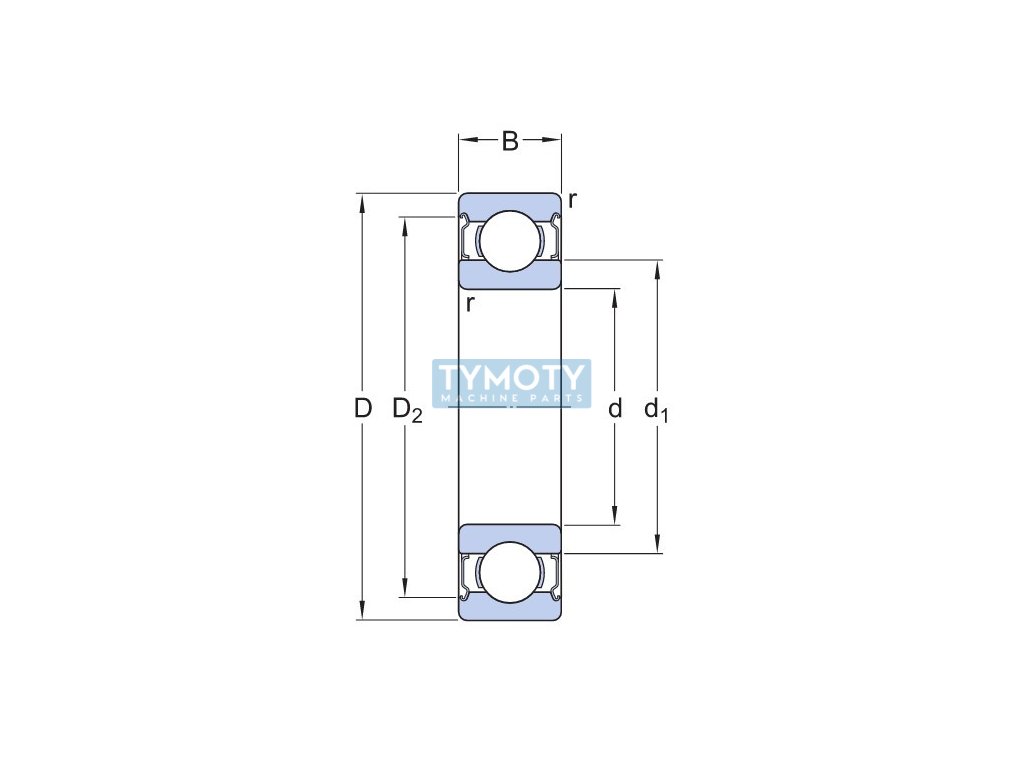

SKF bearing 619/9 2Z - non-separable single-row radial ball bearing with a steel cage guided by balls with a non-contacting sheet metal seal on both sides and normal radial clearance. The cover plates of the 619/9-2Z bearing are pressed into the recess of the ring. The 619/9-2Z bearing is designed for mounting with a rotating inner ring and is filled with high-quality lubricant with a temperature range from -40°C to +100°C for the entire service life of the bearing. by manufacturers NSK, NTN, EZO marked as bearing 699 ZZ, 699 2Z.Additional parameters
| Category: | Bearings > ball > miniature d=0.6 to 9mm > d = 9 mm > 619/9, 699 (D=20 B=6) |
|---|---|
| Weight: | 0.007 kg |
| EAN: | 7316577101501 |
| Cage: | steel |
| Clearance: | normal |
| Diameter D (mm): | 20, 9 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | SKF |
| Material: | steel |
| Maximum temperature °C: | +120 |
| Minimum temperature °C: | -20 |
| Seal: | double-sided cover, sheet metal |
| The shape of the outer ring: | without flange / groove |
| Width B (mm): | 6 |
| Značení: | 619/9-2Z |
| Typ: | kuličkové ložisko |
