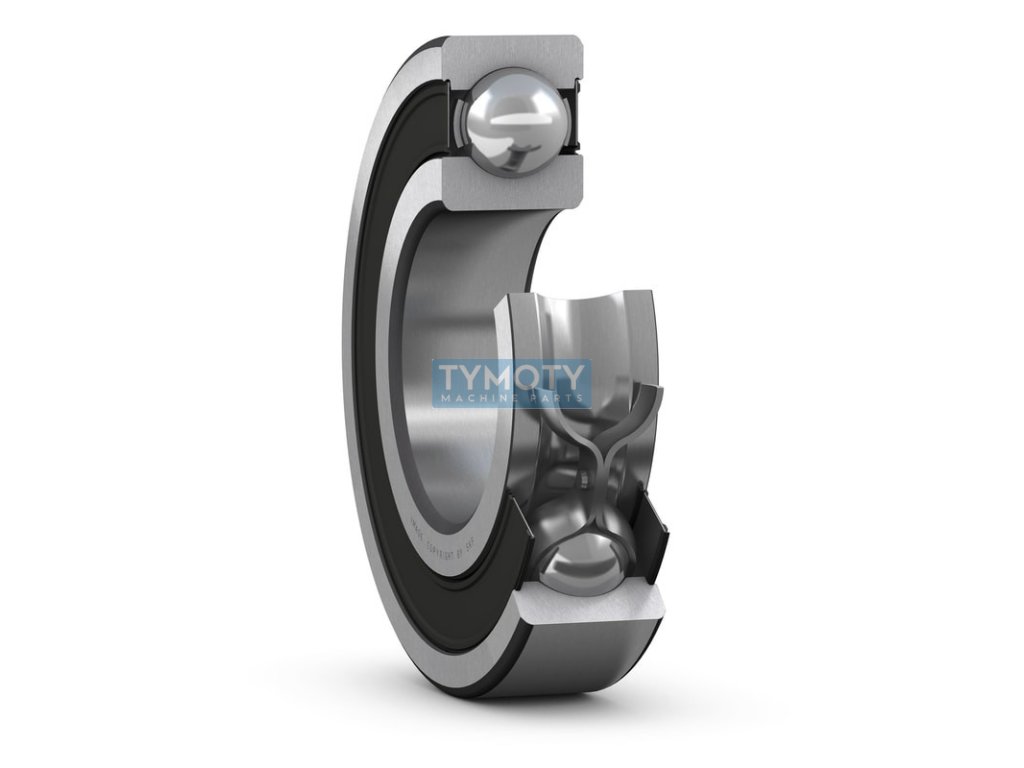

SKF 61800-2RS1 deep groove ball bearing
Code: 318308
Product detailed description
SKF bearing 61800 2RS1 - non-separable single-row radial ball bearing with a steel cage guided by balls with double-sided friction seals and normal radial clearance. The seals of the 61800 bearing are made of oil-resistant and abrasion-resistant rubber, which is vulcanized to a metal reinforcement and are pressed into grooves in the outer ring. The sealing blades rest on a smooth inner ring. The 61800-2RS bearing is filled with high-quality lubricant with a temperature range from -40 ° C to +100 ° C for the entire service life of the bearing.The 61800 2RS bearing is marked by Asian manufacturers as the 6800 DDU NSK, 6820 LLU bearing.
Additional parameters
| Category: | Bearings > ball > single row 618xx (68xx) > 61800, 6800 |
|---|---|
| Weight: | 0.005 kg |
| EAN: | 7316577742438 |
| Cage: | steel |
| Clearance: | normal |
| Diameter D (mm): | 10, 19 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | SKF |
| Material: | steel |
| Maximum temperature °C: | +120 |
| Minimum temperature °C: | -20 |
| Seal: | double-sided contact, rubber |
| The shape of the outer ring: | without flange / groove |
| Width B (mm): | 5 |
| Značení: | 61800-2RS1 |
| Typ: | kuličkové ložisko |
