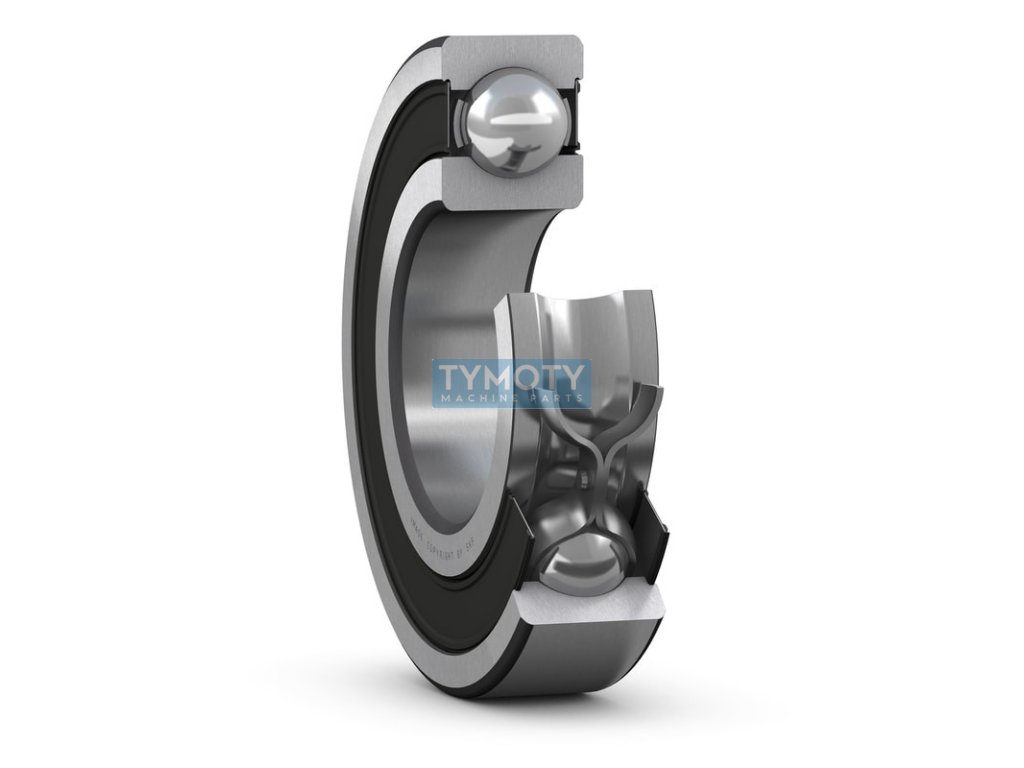

SKF 6017-2RS1/C3 deep groove ball bearing
Code: 317688
Product detailed description
SKF Explorer bearing 6017 2RS1 C3 - non-separable single-row radial ball bearing with a steel cage guided by balls with double-sided friction seals and radial clearance greater than normal. The seals of the 6017 bearing are made of oil-resistant and abrasion-resistant rubber, which is vulcanized to a metal reinforcement and are pressed into grooves in the outer ring. The sealing blades rest on a smooth inner ring. The 6017-2rs bearing is filled with high-quality lubricant with a temperature range from -40°C to +100°C for the entire life of the bearing. are manufactured with higher accuracy than normal. The dimensional accuracy corresponds to accuracy class P6.Additional parameters
| Category: | Bearings > ball > single row 60xx > 6017 > contact seal |
|---|---|
| Weight: | 0.914 kg |
| EAN: | 7316576618161 |
| Cage: | steel |
| Clearance: | C3 - slightly enlarged |
| Diameter D (mm): | 85, 130 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | SKF |
| Material: | steel |
| Maximum temperature °C: | +120 |
| Minimum temperature °C: | -20 |
| Seal: | double-sided contact, rubber |
| The shape of the outer ring: | without flange / groove |
| Width B (mm): | 22 |
| Značení: | 6017-2RS1/C3 |
| Typ: | kuličkové ložisko |
