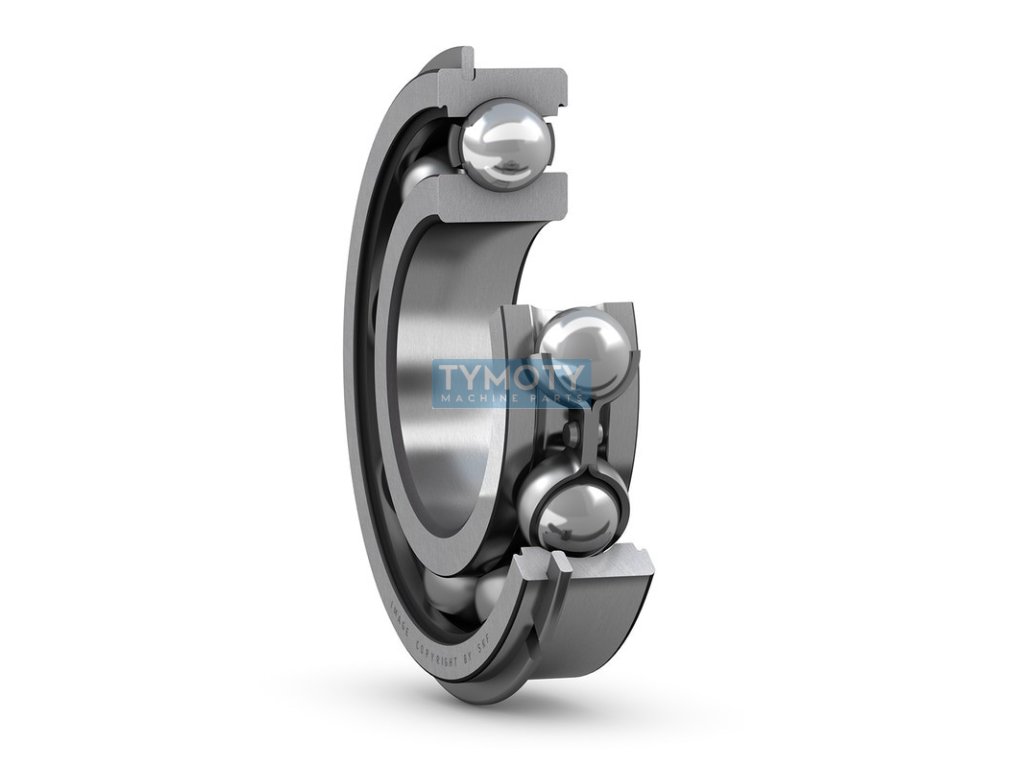

SKF 6013 NR deep groove ball bearing
Code: 317498
Product detailed description
SKF Explorer bearing 6013 NR - non-separable single row deep groove ball bearing, open without seal, with a steel cage guided by balls, normal radial clearance and a groove for a snap ring. The bearing is supplied with a snap ring SP 140.SKF Explorer class 6013 NR bearings represent a new group of high-performance rolling bearings, offering a significant increase in the main operating parameters, such as noise, vibration, heat generation, operational reliability, dynamic accuracy and are manufactured with higher. Dimensional accuracy corresponds to accuracy class P6.
Additional parameters
| Category: | Bearings > ball > single row 60xx > 6013 > snap ring groove |
|---|---|
| Weight: | 0.443 kg |
| EAN: | 7316577612922 |
| Cage: | steel |
| Clearance: | normal |
| Diameter D (mm): | 65, 100 |
| Groove n: | 1x with locking ring |
| Hole profile: | cylindrical |
| Manufacturer's brand: | SKF |
| Material: | steel |
| Maximum temperature °C: | +120 |
| Minimum temperature °C: | -20 |
| Seal: | without gaskets |
| The shape of the outer ring: | groove with circlip |
| Width B (mm): | 18 |
| Značení: | 6013 NR |
| Typ: | kuličkové ložisko |
