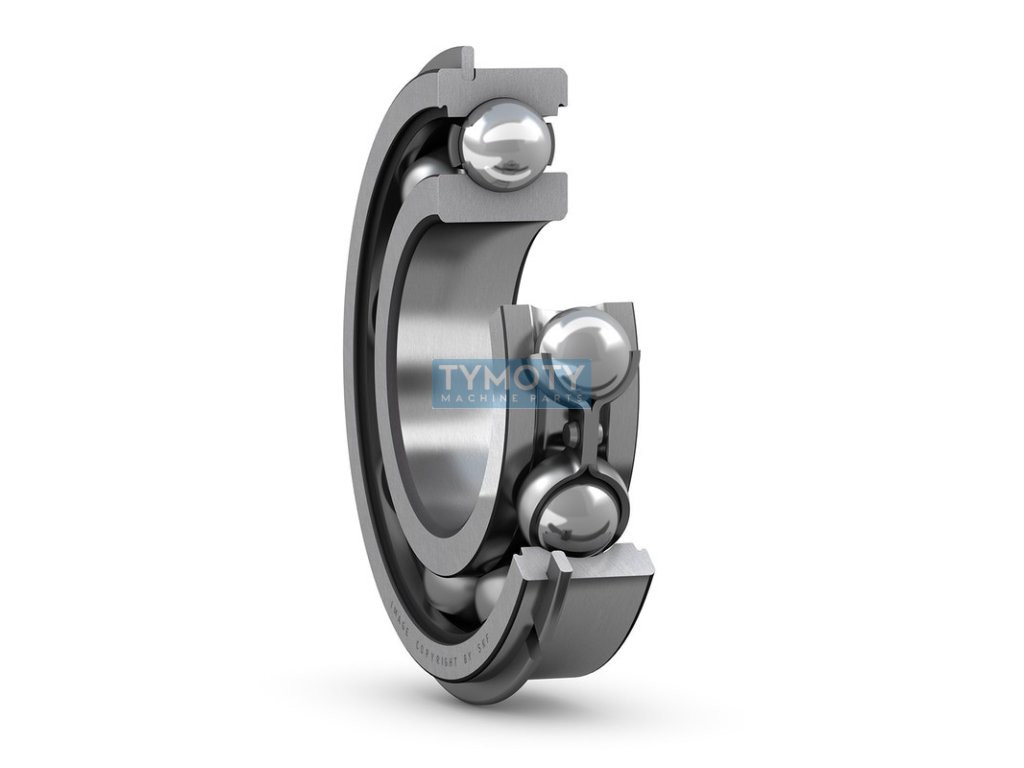

SKF 6010 NR deep groove ball bearing
Code: 317328
Product detailed description
SKF Explorer bearing 6010 NR - non-separable single row deep groove ball bearing, open without seal, with a steel cage guided by balls, normal radial clearance and a groove for a snap ring. The bearing is supplied with a snap ring SP 80.SKF Explorer class 6010 NR bearings represent a new group of high-performance rolling bearings, offering a significant increase in the main operating parameters, such as noise, vibration, heat generation, operational reliability, dynamic load capacity and are manufactured with a higher. Dimensional accuracy corresponds to accuracy class P6.
Additional parameters
| Category: | Bearings > ball > single row 60xx > 6010 > snap ring groove |
|---|---|
| Weight: | 0.264 kg |
| EAN: | 7316577293244 |
| Cage: | steel |
| Clearance: | normal |
| Diameter D (mm): | 80, 50 |
| Groove n: | 1x with locking ring |
| Hole profile: | cylindrical |
| Manufacturer's brand: | SKF |
| Material: | steel |
| Maximum temperature °C: | +120 |
| Minimum temperature °C: | -20 |
| Seal: | without gaskets |
| The shape of the outer ring: | groove with circlip |
| Width B (mm): | 16 |
| Značení: | 6010 NR |
| Typ: | kuličkové ložisko |
