SKF 3307 A-2RS1TN9/C3MT33 Angular Contact Ball Bearing
Code: 327869
Product detailed description

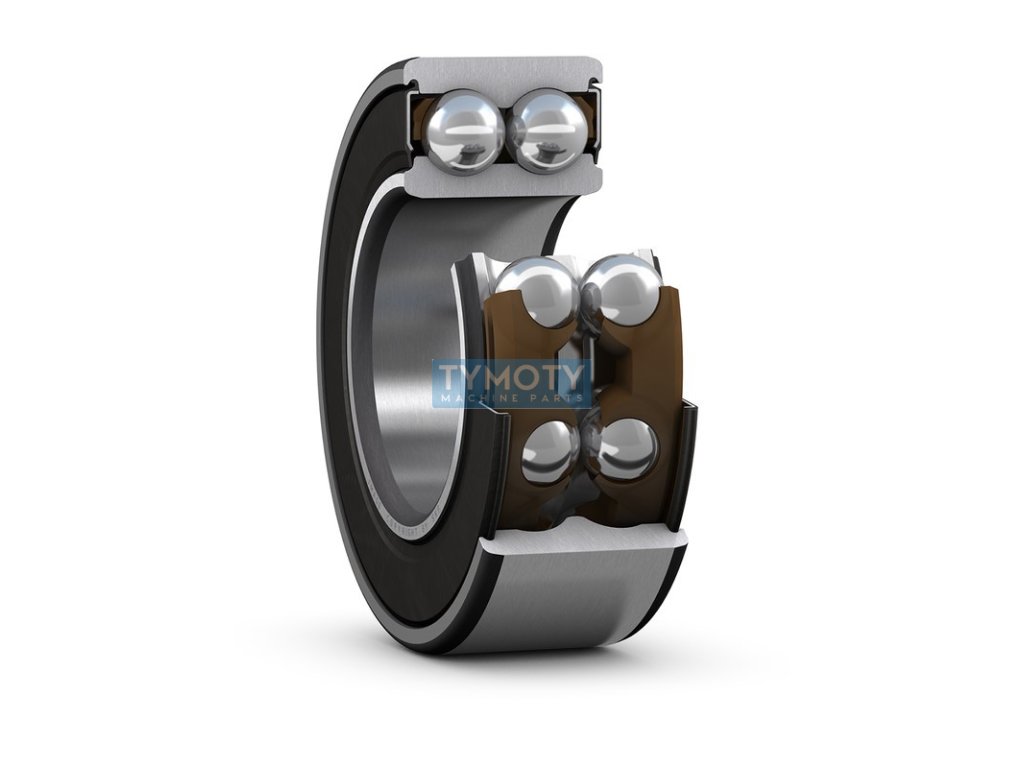

SKF Explorer 3307 A-2RS1TN9/C3MT33 - non-separable double row angular contact ball bearing with optimized internal design without filler grooves, plastic cage made of glass fiber reinforced polyamide 6.6 guided by two rows of balls, normal beige.The seals are made of oil-resistant and abrasion-resistant rubber, which is vulcanized to a metal reinforcement and are pressed into grooves in the outer ring. Sealing blades 3 according to the NLGI scale with a temperature range from -30°C to +120°C for the entire service life of the bearing. The bearing can carry radial and bidirectional axial loads.
SKF Explorer class bearings represent a new class of high-performance rolling bearings, offering a significant increase in key operating parameters such as noise, vibration, heat generation with higher magnitude and dynamics. P6.

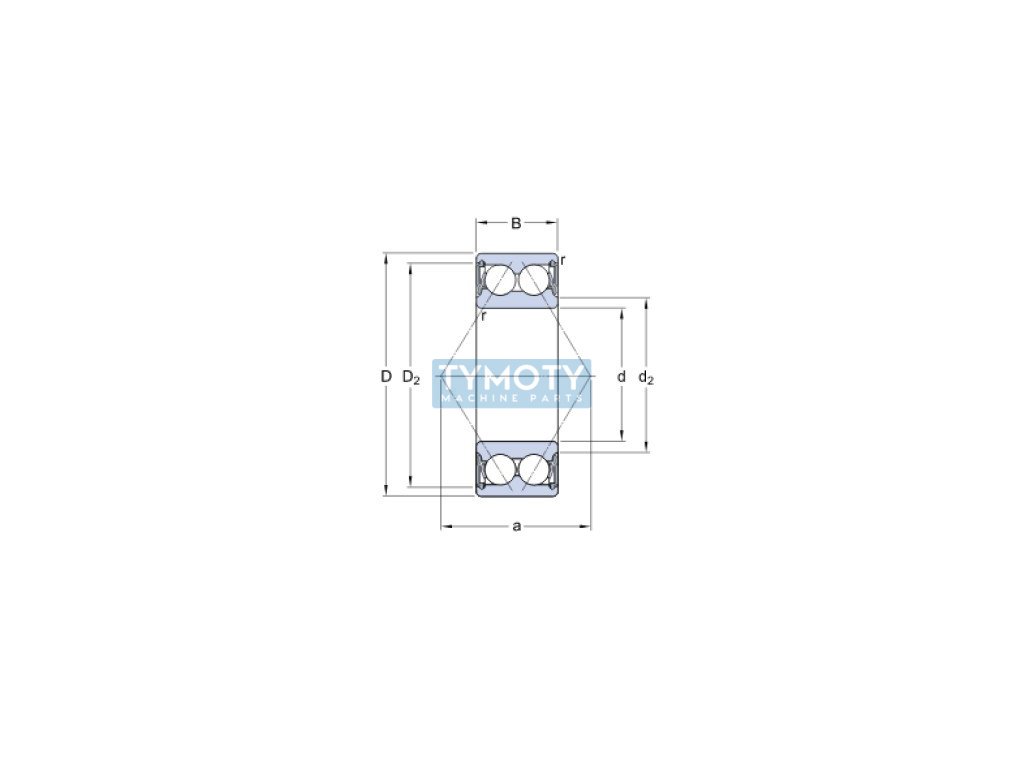

Additional parameters
| Category: | Bearings > ball bearing with diagonal contact > 33.. (53..) double row > 3307 (5307) > sealed |
|---|---|
| Weight: | 0.729 kg |
| EAN: | 7316571842134 |
| Angle ( ° ): | 30° |
| Cage: | polyamide |
| Clearance: | C3 - slightly enlarged |
| Diameter D (mm): | 80, 35 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | SKF |
| Material: | steel |
| Maximum temperature °C: | +120 |
| Minimum temperature °C: | -20 |
| Seal: | double-sided - rubber |
| The shape of the outer ring: | without flange / groove |
| Width B (mm): | 34,9 |
| Značení: | 3307 A-2RS1TN9/C3MT33 |
| Typ: | kuličkové ložisko s kosoúhlým stykem |
