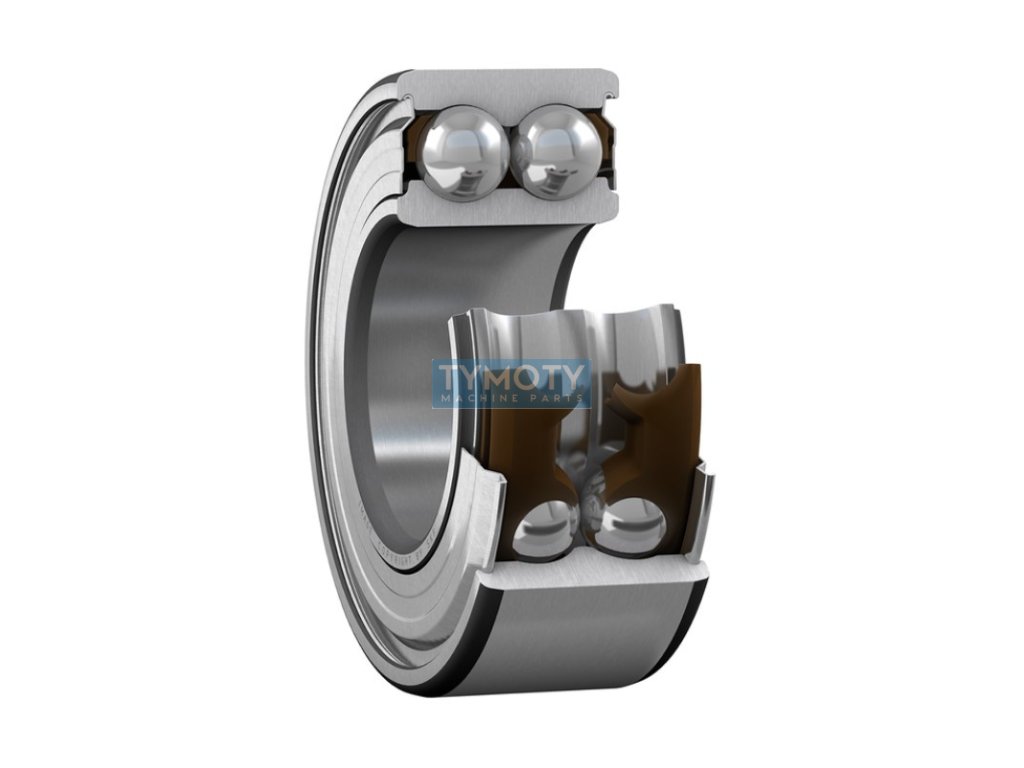

SKF 3305 A-2ZTN9/MT33 Angular Contact Ball Bearing

Product detailed description

SKF Explorer 3305 A-2ZTN9/MT33 - non-separable double row angular contact ball bearing with optimized internal design without filler grooves, plastic cage made of glass fiber reinforced polyamide 6.6 guided by two rows of balls, both with clearance. The cover plate fits snugly against the smooth inner ring. The bearing is designed for mounting with a rotating inner ring and is filled with high-quality NLGI class 3 grease with a temperature range of -30°C to +120°C for the entire service life of the bearing. If the outer ring rotates, grease leakage may occur at higher speeds.
The bearing has a contact angle of 30° and the rolling elements are arranged as in a paired pair of single row angular contact ball bearings in an O configuration, i.e. back to back, and can carry both radial and bidirectional axial loads. SKF Explorer class bearings represent a new class of high-performance rolling bearings with reduced noise, vibration, heat generation, operational reliability, dynamic load capacity and are manufactured with higher accuracy than normal. The dimensional accuracy corresponds to accuracy class P6.
