SKF 3218 A angular contact ball bearing
Code: 327538
Product detailed description

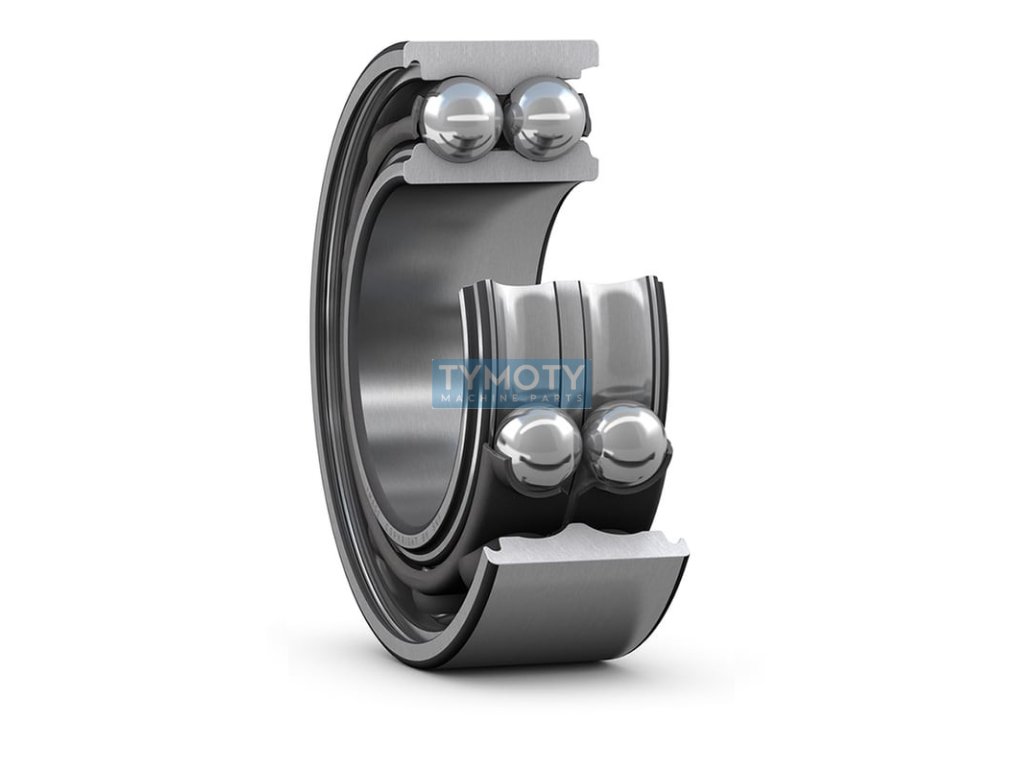

SKF 3218 A - non-separable double row angular contact ball bearing with optimized internal design without filler grooves, pressed steel open cage guided by two rows of balls and with normal axial clearance. The bearing has a contact angle of 3. A pair of single row angular contact ball bearings in the \O\ configuration, i.e. back to back, and can carry radial and bidirectional axial loads."Additional parameters
| Category: | Bearings > ball bearing with diagonal contact > 32.. (52..) double row > 3218 |
|---|---|
| Weight: | 3.73 kg |
| EAN: | 7316570772555 |
| Angle ( ° ): | 30° |
| Cage: | steel |
| Clearance: | normal |
| Diameter D (mm): | 90, 160 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | SKF |
| Material: | steel |
| Maximum temperature °C: | +150 |
| Minimum temperature °C: | -20 |
| Seal: | without gaskets |
| The shape of the outer ring: | without flange / groove |
| Width B (mm): | 52,4 |
| Značení: | 3218 A |
| Typ: | kuličkové ložisko s kosoúhlým stykem |
