SKF 3207 A-2RS1TN9/MT33 Angular Contact Ball Bearing
Code: 327308
Product detailed description

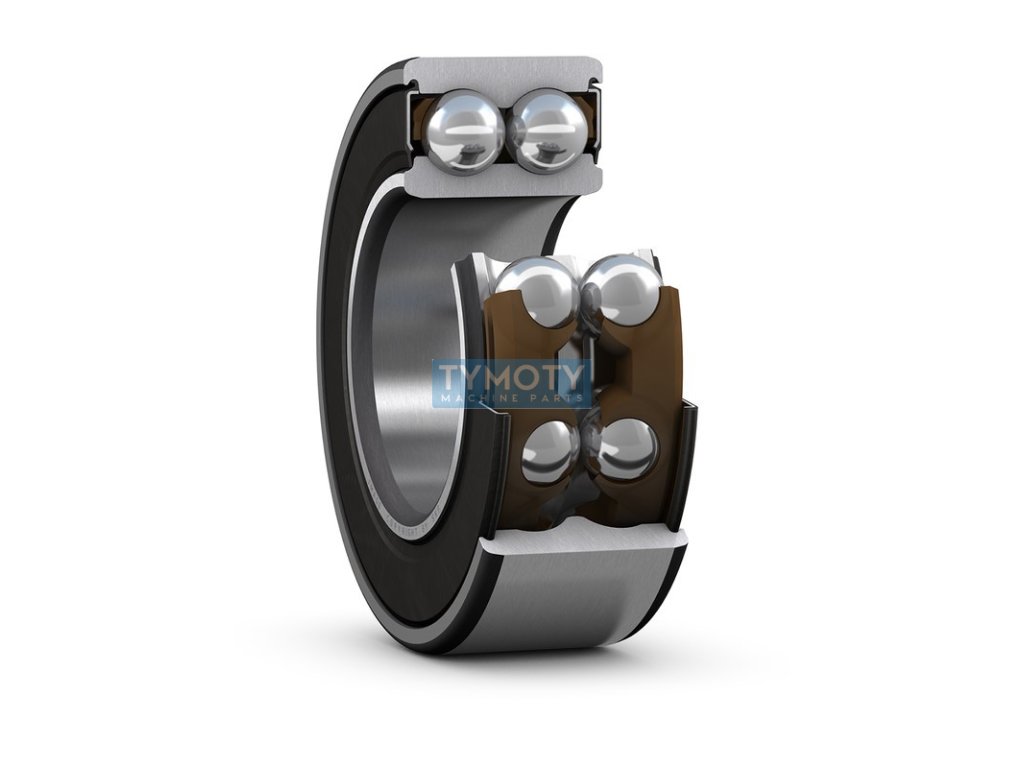

SKF Explorer 3207 A-2RS1TN9/MT33 - non-separable double row angular contact ball bearing with optimized internal design without filler grooves, plastic cage made of glass fiber reinforced polyamide 6.6 guided by two rows of balls, both with clearance.The seals are made of oil-resistant and abrasion-resistant rubber, which is vulcanized to a metal reinforcement and are pressed into grooves in the outer ring. 3 according to the NLGI scale with a temperature range from -30°C to +120°C for the entire service life of the bearing. The bearing can carry radial and bidirectional axial loads.
SKF Explorer class bearings represent a new class of high-performance rolling bearings, offering a significant increase in key operating parameters such as noise, vibration, heat generation with higher magnitude and dynamics. P6.
Additional parameters
| Category: | Bearings > ball bearing with diagonal contact > 32.. (52..) double row > 3207 (5207) > contact seal |
|---|---|
| Weight: | 0.444 kg |
| EAN: | 7316571143156 |
| Angle ( ° ): | 30° |
| Cage: | polyamide |
| Clearance: | normal |
| Diameter D (mm): | 72, 35 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | SKF |
| Material: | steel |
| Maximum temperature °C: | +110 |
| Minimum temperature °C: | -30 |
| Seal: | double-sided - rubber |
| The shape of the outer ring: | without flange / groove |
| Width B (mm): | 27 |
| Značení: | 3207 A-2RS1TN9/MT33 |
| Typ: | kuličkové ložisko s kosoúhlým stykem |
