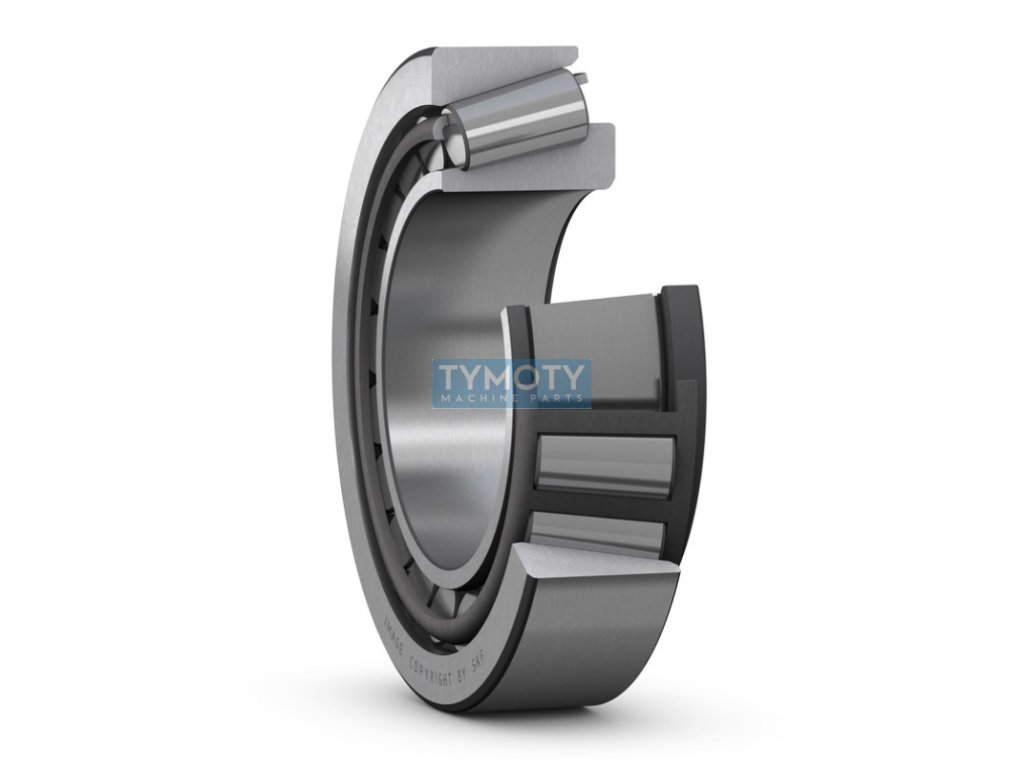

SKF 31305 tapered roller bearing

Product detailed description

SKF 31305 is a single-row tapered roller bearing designed to transmit combined radial and axial loads. This bearing has a cylindrical bore with a diameter of 25 mm, an outer diameter of 62 mm and an overall width of 18.25 mm. The width of the bearing itself is 17 mm, while the width of C is 13 mm. The bearing is made of high-quality steel, which ensures high resistance and a long service life in demanding operating conditions.

The design of the bearing includes a pressed steel cage, which ensures proper guidance of the rollers and minimizes friction. The bearing is without a seal, which allows its use in applications where external lubrication is provided. The operating temperature range is from -30 °C to +120 °C, which makes this bearing suitable for a wide range of industrial applications. The running accuracy corresponds to class P0/PN, which is equivalent to ABEC 1, and ensures reliable performance under standard operating conditions.

SKF 31305 belongs to the Explorer series, which means that it has been optimized for higher performance and efficiency. The bearing weighs 0.27 kg and is supplied as a complete assembly, ready for immediate installation. Thanks to its design features and high-quality processing, this bearing is an ideal choice for applications where high reliability and load resistance are required.
