SKF 2313 K tilting ball bearing
Code: 323398
Product detailed description

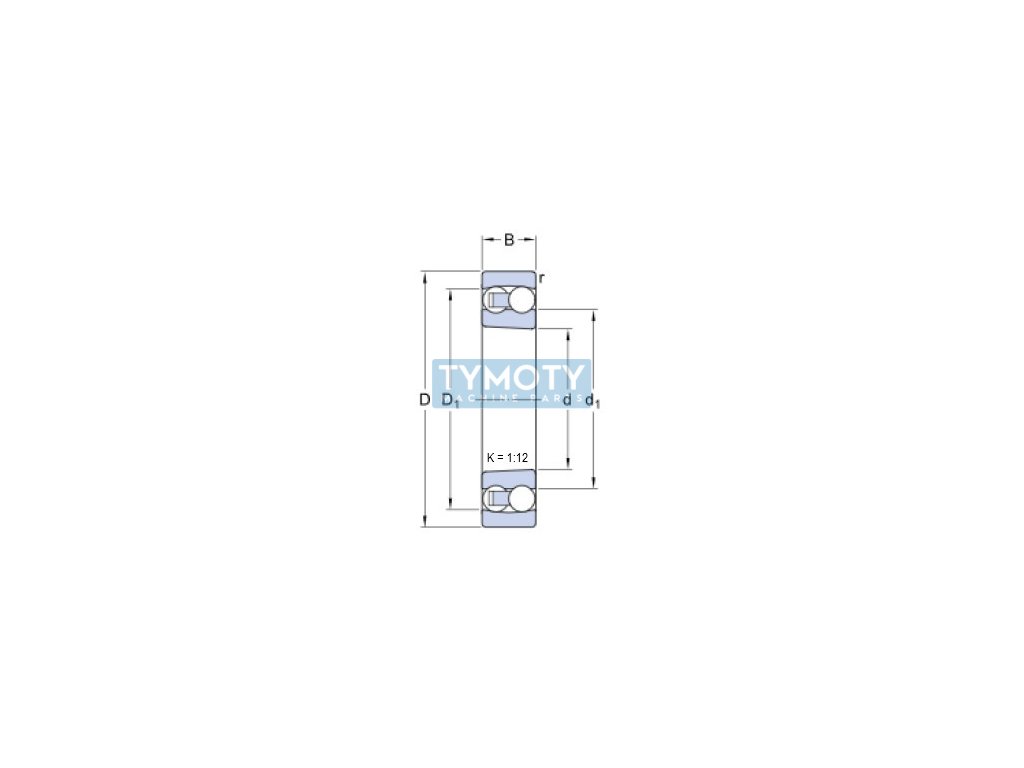

SKF 2313 K - non-separable double row self-aligning ball bearing with a 1:12 tapered bore, a pressed steel cage guided by two rows of balls and with normal radial clearance.The outer ring has a common spherical raceway for both misalignments, or deflection of the shaft relative to the housing. The bearing is mounted on a cylindrical shaft using an H 2313 adapter sleeve.
Additional parameters
| Category: | Bearings > tilting ball > 23..K taper hole > 2313K |
|---|---|
| Weight: | 3.16 kg |
| EAN: | 7316576608780 |
| Cage: | steel |
| Clearance: | normal |
| Diameter D (mm): | 65, 140 |
| Hole profile: | conical |
| Manufacturer's brand: | SKF |
| Material: | steel |
| Width B (mm): | 48 |
| Značení: | 2313 K |
| Typ: | naklápěcí kuličkové ložisko |
